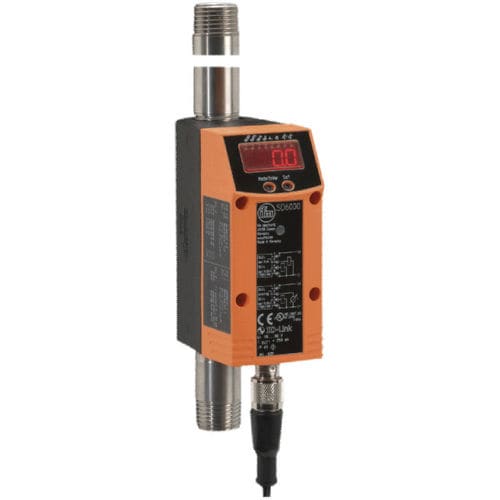

TOFD flow meter 288365volumefor compressed airin-line
Add to favorites
Compare this product
Characteristics
- Technology
- TOFD
- Type
- volume
- Fluid
- for compressed air
- Installation
- in-line
- Material
- aluminum
- Communication
- digital output
- Supply voltage
- 24VDC
- Volumetric flow rate
Min.: 0.2 m³/h
(7.0629 ft³/h)Max.: 75 m³/h
(2,648.6 ft³/h)- Process temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)- Process pressure
Min.: 0 bar
(0 psi)Max.: 16 bar
(232.06 psi)- Precision
1.5 %
Description
Flow meter with IO-Link
Medium:
Compressed air
Mounting position:
Arbitrary
Mounting type:
Line fitting
Material of casing:
PBT-GF20; Aluminium powder-coated
Supply voltage:
18 – 30 V DC
Repeating accuracy:
± 1,5 %
Accuracy:
ISO 8573-1: class 141: ± (3 % MW + 0,3 % MEW) / ISO 8573-1: class 344: ± (6 % MW + 0,6 % MEW)
Outputs:
2
Output signal:
Switching signal, Analog signal, Pulse signal, IO-Link, (configurable)
Price information:
Due to price increases on the raw materials market, some items include a surcharge
