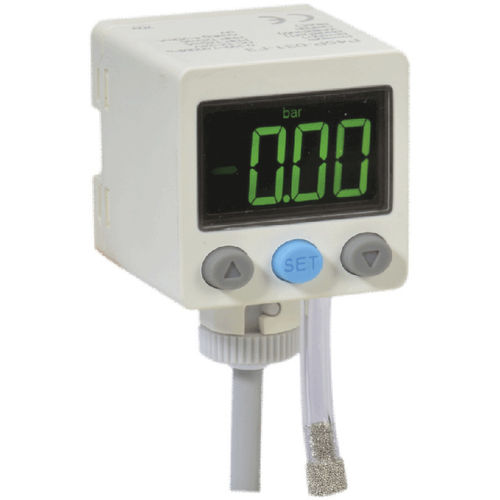

PNP pressure switch 287983

threadedstainless steeldigital

igital pressure switch type 50 with sensor output, stainless steel Producer Medium: Filtered, not corrosive compressed air, neutral gases Mounting type: Line fitting or panel mounting Material of casing: Polymer Material of threaded fitting: Stainless steel 1.4404 Protection class: IP 65 Electrical connection: Plug with bayonet lock, 5-pin, including 2 m connection cable Supply voltage: 12 – 24 V DC ±10 % Current consumption: ≤40 mA (without load) Repeating accuracy: ±0,3 % FS Switching time: 2,5 ms Outputs: 2x switching output PNP, 1x signal output analogue Communication protocol: Analogue: 4 ~ 20 mA Output load capacity: 125 mA Display type: LC-display red/green, two lines Indicator accuracy: ±2 % FS; ±1 display step International approval: CE Other functions: kPa, Mpa, kgf/cm², bar, psi, inHg selectable; hysteresis adjustable Price information: Due to price increases on the raw materials market, some items include a surcharge
