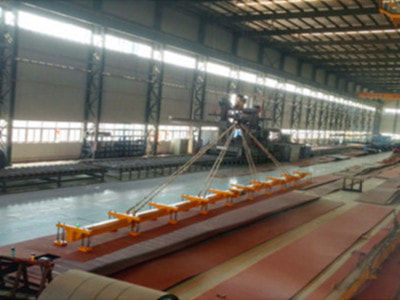

Single steel sheets lifting beam HM3 series
fixedAC-powerelectro-permanent

single steel sheets lifting beam
single steel sheets lifting beam
Add to favorites
Compare this product


Characteristics

Product applications
single steel sheets
Type
fixed
Power
AC-power
Options
electro-permanent
Carrying capacity

1,000 kg, 2,000 kg, 3,000 kg, 4,000 kg
(2,205 lb, 4,409 lb, 6,614 lb, 8,818 lb)

Number of cups

6 unit, 12 unit, 18 unit, 24 unit

Description

Lifting long Steel Sheets is a difficult and time-consuming operation. In addition, thin Steel Sheets are very flexible, which makes moving very dangerous. The HM3 electro permanent magnetic Beam are composed with a number of electro permanent magnet modules that are elastically suspended for perfect adaptation to the Steel sheet. The electronic control has a selector switch with which several magnetic modules can be activated or deactivated, according to the shape of the Steel Sheet. Lifting of one single Steel Sheet is granted by the "PICK-UP" cycle. ​Control via the integrated digital push Buttons or with the standard supplied Radio remote Control.​ THE MOST SAFE LIFTING MAGNET • - Electro permanent magnetic Technology independent of the electric Current = 100% safe. • - Safety Factor 3:1 • - An inductive proximity Switch mounted on the lifting Mechanism prevents accidental demagnetization in the air. • - Integrated "PICK-UP" Cycle at lower Force (4 levels) for picking up thin Steeplates, followed by FULLMAG. • - Digital illuminated push Buttons for easy and clear Operation. • - Simultaneous 2-button operation to demagnetize. • - Lamp block for indication of the Status of the Magnet. • - Radio remote control which prevents the operator from getting close to the load.
