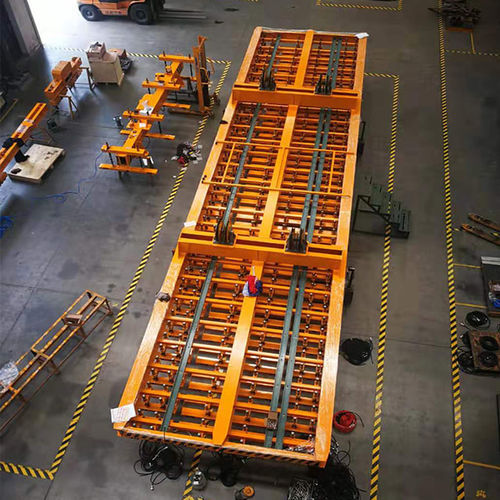

Cutted piece lifting beam HM5 series
fixedAC-powerelectro-permanent

cutted piece lifting beam
cutted piece lifting beam
cutted piece lifting beam
cutted piece lifting beam
cutted piece lifting beam
Add to favorites
Compare this product


Characteristics

Product applications
for cutted pieces
Type
fixed
Power
AC-power
Options
electro-permanent
Carrying capacity

Min.: 700 kg
(1,543 lb)

Max.: 2,400 kg
(5,291 lb)

Description

Specially developed to remove cutted Pieces, including residual Material, from the cutting Table in one movement. ​Lowers labor costs while increasing productivity proportionately. This magnetic Beams are composed of a large number of electro permanent magnetic Modules, elastically suspended, for perfect contact with the workpiece. Depending on the Surface cutted Pieces that has to be removed, a corresponding Zone of magnetic Modules can be selected. Control via the integrated digital push buttons or with the standard supplied radio remote control.​​ THE MOST SAFE LIFTING MAGNET • - Electro permanent magnetic Technology independent of the electric Current = 100% safe. • - Safety Factor 3:1 • - An inductive proximity Switch mounted on the lifting Mechanism prevents accidental demagnetization in the air. • - Integrated "PICK-UP" Cycle at lower Force (4 levels) for picking up thin Steeplates, followed by FULLMAG. • - Digital illuminated push Buttons for easy and clear Operation. • - Simultaneous 2-button operation to demagnetize. • - Lamp block for indication of the Status of the Magnet. • - Radio remote control which prevents the operator from getting close to the load.
