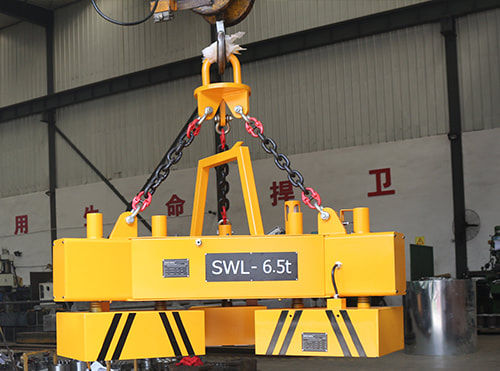

Coil lifting beam HC

fixedAC-powermagnetic module

This complete range of electro permanent magnet modules is specially designed for quick and safe handling of coils, with horizontal or vertical eye. In addition, the coil material is not compressed and dammaged, which is the case when using traditional coil grippers. Since the coils can be stored side by side, up to 30% space can be saved. The electronic control unit is equipped with an interface and can be integrated in an automatic production process (decoilling) THE MOST SAFE LIFTING MAGNET • - Electro permanent magnetic Technology independent of the electric Current = 100% safe. • - Safety Factor 3:1 • - An inductive proximity Switch mounted on the lifting Mechanism prevents accidental demagnetization in the air. • - Integrated "PICK-UP" Cycle at lower Force (4 levels) for picking up thin Steeplates, followed by FULLMAG. • - Digital illuminated push Buttons for easy and clear Operation. • - Simultaneous 2-button operation to demagnetize. • - Lamp block for indication of the Status of the Magnet. • - Radio remote control which prevents the operator from getting close to the load.
