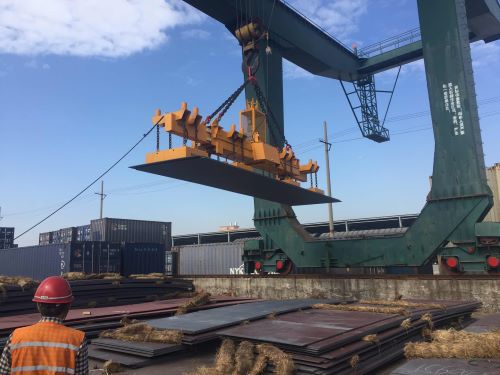

Multiple steel sheets lifting beam HM6

fixedAC-powerelectro-permanent

Latest development of electro permanent lifting magnets for fast and safe lifting of stacks of steel plates. Very powerful electro permanent magnet modules with deep magnetic field. These magnets find their applications in port companies, steel transshipment companies, logistics, etc. With simple "tip-off" function to release plate by plate. THE MOST SAFE LIFTING MAGNET • - Electro permanent magnetic Technology independent of the electric Current = 100% safe. • - Safety Factor 3:1 • - An inductive proximity Switch mounted on the lifting Mechanism prevents accidental demagnetization in the air. • - Integrated "PICK-UP" Cycle at lower Force (4 levels) for picking up thin Steeplates, followed by FULLMAG. • - Digital illuminated push Buttons for easy and clear Operation. • - Simultaneous 2-button operation to demagnetize. • - Lamp block for indication of the Status of the Magnet. • - Radio remote control which prevents the operator from getting close to the load.
