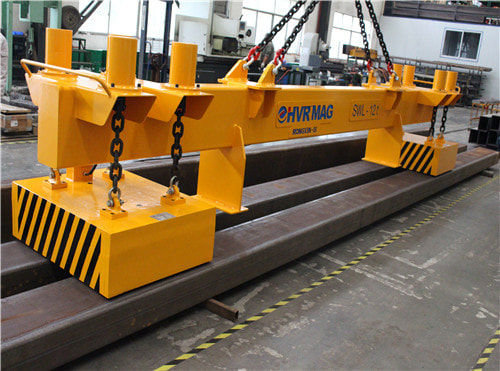

Steel blocks lifting beam HB

fixedAC-powermagnetic module

High-performance electro permanent magnet modules for large air gaps. Welded Beam in construction Steel with electro permanent magnetic modules elastically suspended for perfect adaptation to the material. For loading and unloading ships, railway wagons, use in steel mills, etc. Control via the integrated digital push buttons or with the standard supplied radio remote control. THE MOST SAFE LIFTING MAGNET • - Electro permanent magnetic Technology independent of the electric Current = 100% safe. • - Safety Factor 3:1 • - An inductive proximity Switch mounted on the lifting Mechanism prevents accidental demagnetization in the air. • - Integrated "PICK-UP" Cycle at lower Force (4 levels) for picking up thin Steeplates, followed by FULLMAG. • - Digital illuminated push Buttons for easy and clear Operation. • - Simultaneous 2-button operation to demagnetize. • - Lamp block for indication of the Status of the Magnet. • - Radio remote control which prevents the operator from getting close to the load.
