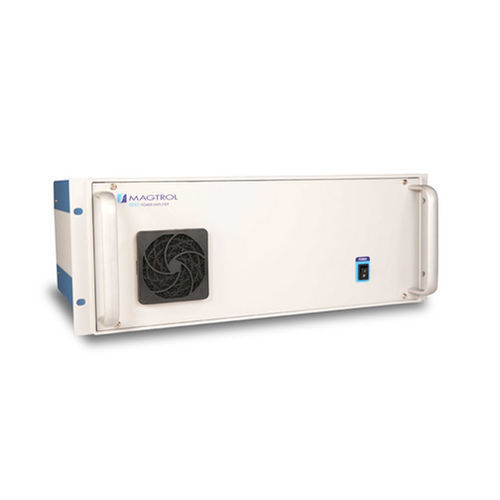

Power amplifier 5242current output
Add to favorites
Compare this product
Characteristics
- Type
- power
- Other characteristics
- current output
- Voltage
Max.: 3 V
Min.: 0 V
- Current
Max.: 5 A
Min.: 0 A
- Frequency
50 Hz, 60 Hz
Description
The Model 5242 is a voltage-controlled power amplifier designed exclusively for Magtrol’s Model HD‑825 Hysteresis Dynamometer. Because of its double braking system, the HD‑825 requires more than 4 amps of power in order to reach full torque. The 5242 (which can provide up to 5 amps of output current) is necessary in order to amplify the power between the DSP7010 Controller (which has a maximum current output of 1 amp) and the HD-825 Dynamometer.
