Power amplifier 5241current output
Add to favorites
Compare this product
Characteristics
- Type
- power
- Other characteristics
- current output
- Voltage
Min.: 0 V
Max.: 3 V
- Current
Min.: 0 A
Max.: 5 A
- Frequency
50 Hz, 60 Hz
Description

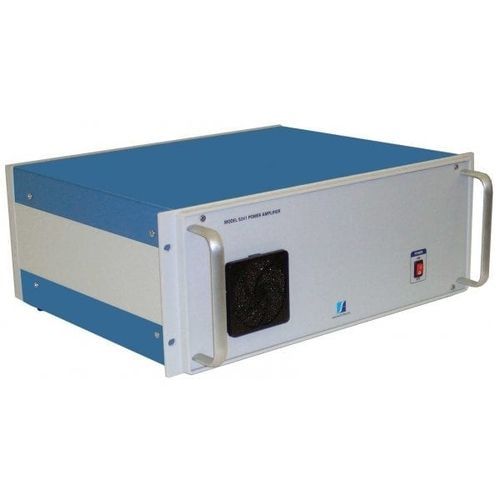

The Model 5241 is a voltage-controlled power amplifier designed exclusively for Magtrol’s Model HD-825 Hysteresis Dynamometer. Because of its double braking system, the HD-825 requires more than 4 amps of power in order to reach full torque. The 5241 (which can provide up to 5 amps of output current) is necessary in order to amplify the power between a 6200 or DSP7000 Controller (which both have a maximum current output of 1 amp) and the HD-825 Dynamometer.
