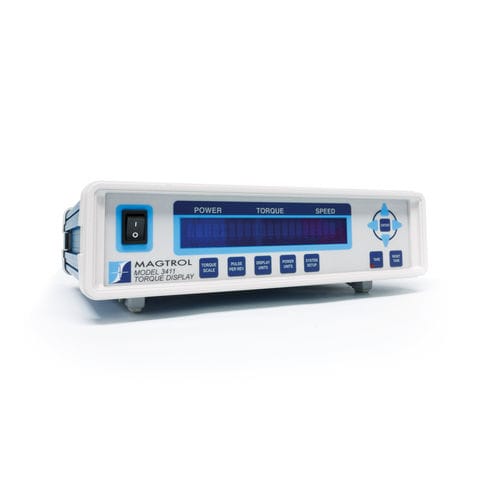

Torque indicator MODEL 3411

digitaltabletopfor torque sensors

Product Description Magtrol’s Model 3411 Torque Display is designed for use with all Magtrol TS, TM, TMHS, TMB and TF Torque Transducers. This easy-to-use device powers the transducer and utilizes high speed processing to display torque, speed and mechanical power. It includes a tare function to help offset any slight residuals caused by couplings or suspended loads. The 3411 may also be used with any torque sensors requiring 24 V DC power (500 mA max.) with ± 5 V DC torque output (± 10 V DC max.) and open collector, TTL or CMOS output for the speed signal. Features •For use with all Magtrol TM / TMHS / TMB In-Line Torque Transducers and TF Torque Flange Sensors •High Quality, Easy-to-Read Vacuum Fluorescent Readout: Displays torque, speed and power •Addition of high resolution quadrature encoder enables low RPM applications or position measurements •Selectable English, Metric and SI Torque Units •Isolated USB Interface •Ethernet connectivity •Torque: Analog, raw sensor output •Speed output; analog or digital, user selectable •BITE: Built-In Test Equipment •Overload Indication •Tare Function •Includes Magtrol Torque 10 Software •High Speed Data Acquisition: Up to 500 torque and speed points per second with time stamp •Rack mount or handle versions available
