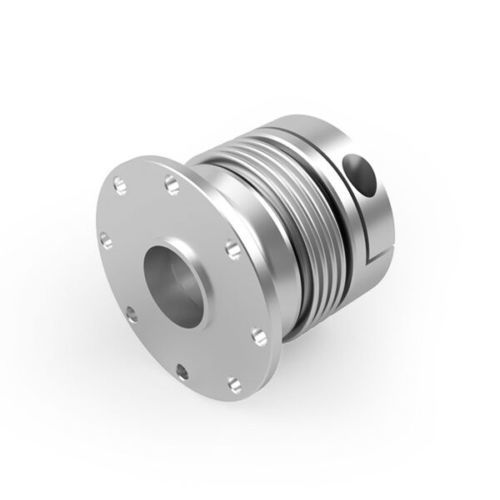

Torsionally flexible coupling BKC-TF seriescompactmetal bellowsstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- torsionally flexible
- Construction
- compact, metal bellows, stainless steel, aluminum
- Product applications
- transmission, for shaft
- Other characteristics
- torque
- Installation system
- flange
- Torque
Min.: 100 Nm
(73.756215 ft.lb)Max.: 4,000 Nm
(2,950.248597 ft.lb)- Rotational speed
Min.: 3,000 rpm
(18,849.5559 rad.min-1)Max.: 17,000 rpm
(106,814.1502 rad.min-1)
Description
BKC-TF Series Metal Bellows Couplings provide the ideal complement to Magtrol’s TF Series Torque Flange Sensors, when mounted in a drive train.
The torque transmission element consists of a metal bellows, clamping hubs for shaft ends and a flange element to connect with the TF Sensor. The couplings are both torsionally stiff and flexible in order to compensate for axial, angular and radial misalignment. The high torsional spring rate of the couplings ensures a high torsional stiffness and angular precision.
Design & Material
Bellows are made of highly flexible high-grade stainless steel. The hub material is made of aluminum stainless steel.
Features
Metal Bellows Couplings for use with Magtrol TF Series Torque Flange Sensors
Designed for transmission of High Torque
High Torsional Stiffness
Light and Compact Design
Radial Clamping Screw hub for smooth shaft
Easy to mount
Suited for space restricted installations
Balancing G 6.3 / ISO 1940 (G 2.5 optional)
Aluminum and Stainless Steel Construction
