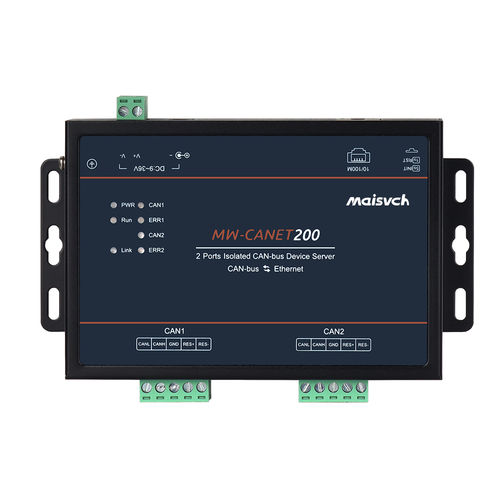

Protocol converter MW-CANET200

frequencyCAN bus-to-EthernetModbus TCP

MW-CANET200 CAN to Ethernet Converter is a robust and versatile solution designed for industrial environments. This wall-mounted server seamlessly bridges the gap between CAN-bus and Ethernet networks, offering bi-directional transmission functionality to expand the reach of your CAN-bus network. Powered by a 32-bit Arm Cortex-M7 core with a main frequency of up to 400MHz and featuring an external hardware watchdog design, the MW-CANET200 ensures reliable performance in demanding industrial settings. It boasts high-level ESD, Surge, and EFT protection, along with strong anti-interference ability, providing a secure and stable communication environment. The MW-CANET200 supports 2*CAN ports and 1*10/100Base-T(X) copper port, with each CAN port isolated from the other to prevent signal interference. The isolation voltage reaches 2kVAC, and you can set the communication baud rate of each CAN channel from 5Kbps to 1000kbps, enabling seamless integration of different baud rates within the CAN network. This converter offers transparent transmission, CAN relay support, and powerful ID filtering functions. It supports WEB configuration for easy network management, allowing you to set operating modes, port information, network addresses, user passwords, and more. It also supports various conversion modes, including UDP/UDP Multicast, TCP Client/Server, Modbus TCP Slave, Relay, Pair Connection Master/Slave, HTTPD Client, and WebSocket Client, ensuring flexible and efficient data transmission.
