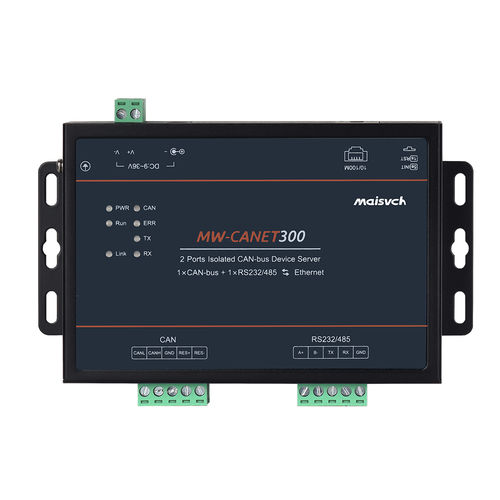

Protocol converter MW-CANET300

RS-232RS-485CAN bus-to-Ethernet

MW-CANET300 Ethernet CAN Server supports 1 100M Ethernet RJ45port and 1*CAN-bus + 1*RS232/485 interfaces for networking, which adopts 32-bit Arm Cortex-M7 core CPU, up to nearly 400MHz main frequency. Each interface is independent of each other, does not affect each other, and can be configured into different modes and baud rates. Features and Benefits Adopt 32-bit Arm Cortex-M7 core CPU, up to nearly 400MHz main frequency Ethernet interface up to 6KV lightning protection, CAN interface up to 4KV surge protection Isolation design, CAN interface isolation voltage 2KVAC Industrial temperature range of -40℃~+85℃
