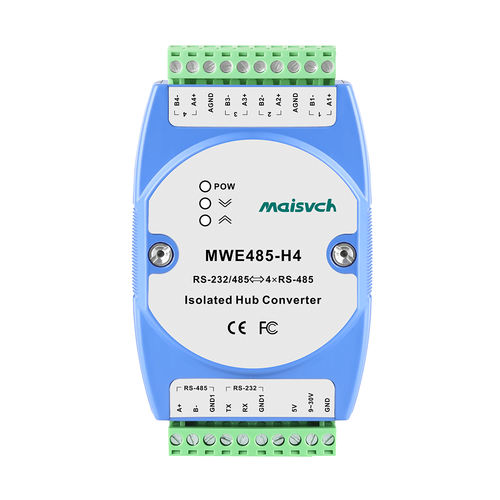

Serial converter MWE485-H4

RS-232 to RS-485DIN railindustrial

The MWE485-H4 is a DIN-rail serial port isolation hub converter that supports bidirectional transparent conversion between one RS232/485 master station and 4 RS485 slave stations.It can improve the RS485 bus structure, increase the load capacity and transmission distance of RS485. It supports DC5V or DC9-30V power input and standard DIN–rail installation method to meet the needs of various industry.It provides a RS-485 star connection mode, which can bring great convenience to network layout. The fanless and low-power hardware design supports a wide temperature range of -40 ℃ to+85 ℃, suitable for various harsh industrial environments. It can be widely used in indoor and outdoor serial field-bus systems. Features and Benefits Support baud rate 300bps to 115200bps Comprehensive fault-tolerant mechanism, one node damage does not affect other nodes Support 15kV static protection and 600W/ms lightning protection, Support 2.5kV optical isolation between the master and slave stations Support 4×128 nodes multi-machine communication Support DC5V or DC9~30V power input Support working temperature from -40 ℃ to +85 ℃
