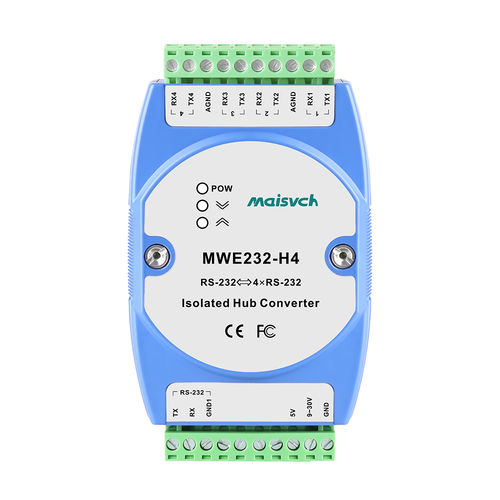

Serial converter MWE232-H4

protocolDIN railindustrial

MWE232-H4 is a DIN-rail serial port isolated HUB converter that supports bidirectional transparent conversion between one RS232 master station and 4 RS232 slave stations, enabling one serial port device to communicate with four serial port devices in a master-slave manner. The product provides 1 master station RS232 and 4 slave station RS232 serial ports, supports DC5V or DC9~30V power input, and adopts standard din rail installation method to meet the needs of various industrial bus sites. It Provides RS232 star connection mode, changing the original one-to-one structure and bringing great convenience to network layout. The hardware adopts a fanless design, low power consumption, supports a wide operating temperature of -40℃~+85℃, and it is suitable for various harsh on-site environments. It can be widely used in indoor and outdoor serial field-bus systems. Features and Benefits Support 300bps-115200bps baud rate Comprehensive fault-tolerant mechanism, one node damage does not affect other nodes Support 15kV static protection and 600W/ms lightning protection, support 2.5kV optical isolation between the master and slave stations Support DC5V or DC9~30V power input Work in -40℃ ~ + 85℃ harsh industrial environments
