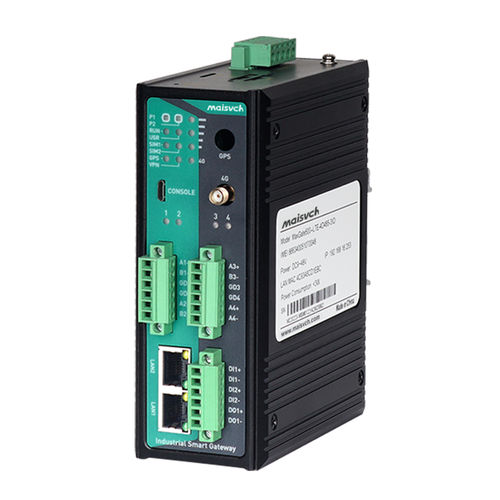

Industrial gateway MaxGate500 series

IoTRS-485USB

The MaxGate500 series is a robust DIN-rail ARM9 industrial intelligent gateway designed for seamless data transmission and integration in IoT applications. Featuring 2x100M copper ports, a 4G antenna channel, an optional GPS antenna, 4xRS485 interfaces, 3 versatile I/O ports, dual SIM card slots, and a Micro SD card slot, this gateway is equipped to handle diverse connectivity needs. It operates on a high-performance, low-power ARM926E-J processor with up to 128MB DDR3 memory, 8GB eMMC storage (optional), and 32MB SPI Nor Flash, ensuring smooth operation. The gateway is capable of transmitting data via its dual network ports or over a 4G cellular network, making it highly adaptable for IoT deployments. With built-in GPS+Beidou satellite navigation, a low-noise amplifier (LNA), and precise tracking capabilities, the device excels in positioning accuracy and reliability. Engineered for industrial-grade performance, the MaxGate500 series is housed in a durable, high-strength aluminum alloy casing and wide temperature operation from -40℃ to +75℃. Its low power consumption and compliance with strict safety and EMC standards make it ideal for demanding environments. The gateway supports various industrial protocols and features onboard 8GB eMMC or expandable Micro SD card storage, along with an external Micro-B USB interface to facilitate secondary development. This versatile gateway is tailored for applications in industrial automation, integrated energy, smart cities, transportation, mining, and factories, ensuring scalability, stability, and reliability across diverse sectors.
