Communication gateway MaxGate800 series

industrialIoTWLAN

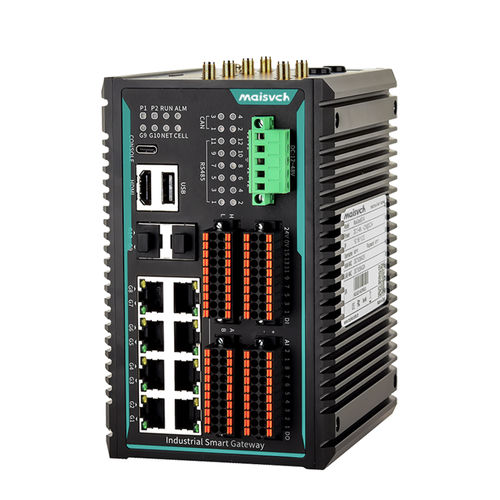

The MaxGate800 series is a cutting-edge DIN-rail ARM Cortex-A55 industrial intelligent gateway that combines advanced communication capabilities with robust hardware integration. This all-in-one solution supports a wide range of functions, including switches, Wi-Fi 6/4G/5G (optional), Modbus, CAN, and I/O gateways. It features 2 Gigabit SFP ports, 8 Gigabit copper ports, 12 RS485 interfaces, 4 CAN channels, 26 I/O (16 DI, 8 DO, and 2 AI), an HDMI port, a USB 2.0 port, and dual Nano SIM card slots. Powered by a quad-core 64-bit ARM Cortex-A55 processor with a 2GHz clock speed, 2GB DDR4 memory, and 8GB eMMC storage, the MaxGate800 delivers high-performance, low-power operation. Its versatile interfaces and abundant hardware resources enable seamless data transmission across LAN, WAN, WLAN, or cellular networks, making it an ideal solution for IoT and industrial applications. Built for demanding environments, the MaxGate800 offers rich protocol support, excellent stability, and extensive scalability, catering to diverse communication drivers and hardware platforms. Its industrial-grade design features a high-strength aluminum alloy casing, and a wide operating temperature range of -40℃ to +75℃. The device supports system redundancy, self-recovery, and secondary development, ensuring reliable and flexible performance. Its low power consumption and wide voltage compatibility make it suitable for challenging industrial conditions. Compliant with strict safety and EMC standards, the MaxGate800 is a versatile gateway for applications in industrial automation, integrated energy, smart cities, transportation
