Industrial gateway MaxGate600

IoTEthernet TCP/IPRS-485

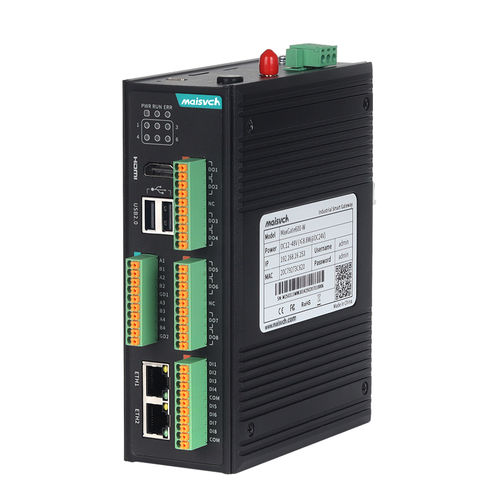

The MaxGate600-2GT-LTE-8D485-8IO is a DIN-rail ARM Cortex-A8 industrial intelligent gateway designed to meet the complex demands of IoT and industrial environments. It boasts 2x1000M copper ports, a 4G antenna, 8xRS485 interfaces, 8 I/O ports, and a USB 2.0 interface, offering versatile connectivity for various operational requirements. Powered by a high-performance 1GHz 32-bit ARM Cortex-A8 processor with 1GB DDR3 memory, 8GB eMMC, and 64MB SPI Nor Flash, the gateway ensures exceptional processing efficiency and reliability. Built on the robust Medip-X3 platform, it enables seamless data transmission across two independent IP network segments or through 4G cellular networks. With rich protocol support, adaptability for diverse hardware platforms, and secondary development capabilities, the MaxGate600 facilitates advanced integration and system redundancy through multiple backup options. Engineered for durability and reliability, the MaxGate600 is housed in a high-strength aluminum alloy casing, and a wide operating temperature range of -40℃ to +75℃. It meets strict safety and EMC standards, ensuring consistent performance in demanding industrial settings. Supporting both AD220V power supply and a DC12V backup, the device offers flexible power configurations to accommodate varied environments. Its low-power consumption and industrial-grade components enhance operational efficiency and longevity. Suitable for industrial automation, integrated energy, smart cities, transportation, mining, and factory applications, the MaxGate600 provides stability, scalability, and robust functionality for modern industrial applications.
