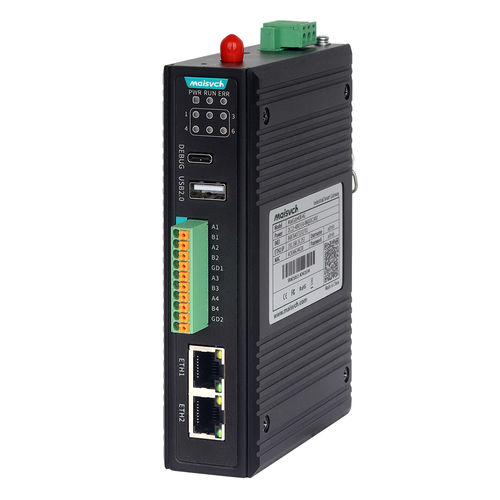

Industrial gateway MaxGate400

IoTWiFiEthernet

The MaxGate400 is a high-performance solution designed for demanding industrial automation and network connectivity applications. Equipped with a powerful tri-core ARM Cortex-A7 processor and additional ARM Cortex-M0 processing capabilities, the MaxGate400 provides high-bandwidth, low-latency communication with excellent reliability. With dual Ethernet ports, multiple RS485 serial ports, USB connectivity, and optional 4G or Wi-Fi support, the gateway is ideal for connecting a wide range of devices in industries such as industrial automation, smart cities, intelligent transportation, and energy management. Its industrial-grade design ensures it performs reliably in harsh environments, from factory floors to outdoor installations, making it an ideal choice for industries requiring robust, secure, and real-time communication. The MaxGate400 also includes remote maintenance tools, allowing seamless integration with private systems for easy monitoring and troubleshooting. Whether you’re developing complex industrial control systems or need a reliable communication hub for IoT devices, the MaxGate400 offers unmatched flexibility and performance in your industrial network infrastructure. - Triple-core 32-bit ARM Cortex-A7 + 1 32-bit ARM Cortex-M0 processor - 512MB DDR3 + 8GB eMMC, 2*100M copper ports, 4 isolated RS485 ports, 1 USB2.0 HOST - Optional 4G cellular network, Optional Wi-Fi (802.11 b/g/n) + Bluetooth (BLE 5.1) - Built-in mature wired, cellular, and Wi-Fi network management systems, supporting multi-network mutual backup switching, automatic reconnection in case of failure, and other mechanisms - Built-in mature equipment remote maintenance software system, supporting multiple VPN protocols, quickly connecting to the privately deployed MixConnect platform, and building remote maintenance channels for PLC and other equipment with one click - Supports user secondary development, supports built-in Modbus gateway function - Supports Docker, secondary development and deployment of own programs quickly - Ubuntu system, supports apt package manager - Supports 1 DC12~48V wide voltage, non-polarity input - Supports -40℃~+75℃ industrial environment, IP40 Level protection - Processor: Tri-core 32-bit ARM Cortex-A7 + 32-bit ARM Cortex-M0, main frequency 1.3GHz - OS: Ubuntu - Memory: 512MB DDR3 - Storage: 8GB eMMC - Ethernet Port: 2* 10/100Base-T(X) auto-sensing copper ports, supporting full/half duplex, auto MDI/MDI-X - Cellular network interface: Antenna interface: 1, SMA-K (external thread and internal hole) - USB: 1 Type-A USB 2.0 port (HOST) - Wi-Fi+Bluetooth: Antenna interface: 2*RP-SMA-K (external thread and internal pin) - HDMI interface: 1 HDMI 1.4 port, supports 1080p@60Hz video output (does not support audio) - Serial Port: Serial port type: 4 isolated RS485 - DEBUG interface: 1 USB Type-C port for device debugging - Button: Restart or restore factory settings with one click - Indicator: Power indicator, system operation indicator, system error indicator, programmable indicator (6) - Power Input: DC12~48V wide voltage, non-polarity input - Full load power consumption: <6W@DC24V - Connection: 3-position 5.08mm pitch terminal block with lock - Dimension: 140×35×100(mm) (excluding rail and connector dimensions) - Installation Method: 35mm standard DIN rail installation - IP Code: IP40 - Weight: About 0.5 kg (excluding antenna) - Operating Temp: -40℃~+75℃ - Storage Temp: -40℃~+85℃ - Relative Humidity: 5%~95% (non-condensing) - EMC: IEC 61000-4-2 (ESD): Level 3 (Contact discharge ±6kV, Air discharge ±8kV) IEC 61000-4-5 (Surge): Level 3 (Power supply: common mode ±2kV, differential mode ±1kV)
