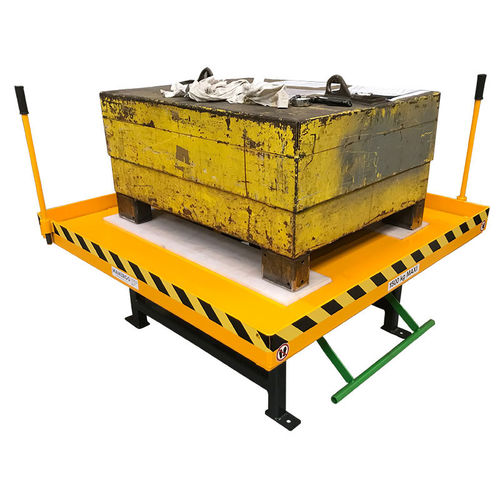

Mechanical turntable PT150-130-130-500-4390

horizontal

This turntable, reference PT150-130-130-500-4390, improves the ergonomics of the workstation. Its use is very simple, the rotation is done by a single pressure of a pedal. The rotation is fluidified by a high reliability ball bearing. This turntable is made to measure and can be adapted to specific dimensions. Manergo, expert in workstation ergonomics, manufactures turntables adapted to a particular need. THE CHARACTERISTICS OF THE TURNTABLE : •Maximum load (CMU): 1500 kg ; •Plate indexing ; •Rotation system: 180° ball bearing; •Overall length: 1316 mm ; •Overall width: 1316 mm ; •Overall height: 1078 mm ; •Plateau length : 1300 mm ; •Tray width : 1300 mm ; •Loading height: 500 mm ; •Height under foot : 95 mm ; •Type of tray : smooth sheet metal ; •Avaloir : 4 flanges of 70 mm height; OPTIONS : •Feet; •Floor mounting plates ; •Handle; PROTECTIONS: •Rotation lock system: mechanical lock with pedal release; •Access door to the crown with D50 hole for cable passage ; •Pictograms.
