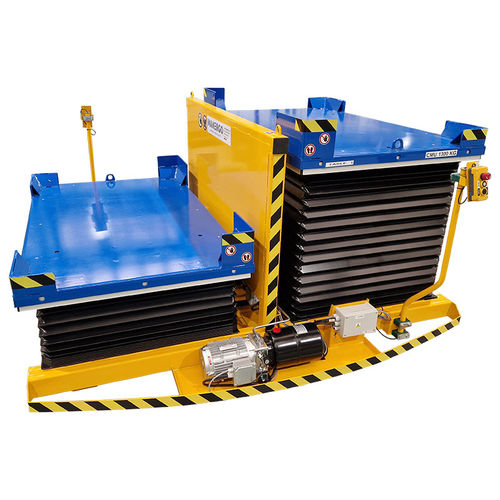

This turntable with 2 lifting tables, reference PT2TEES130-160-100-371-3383-4, offers an ergonomic workstation for operators in various industries. The mechanical rotation is done by pressing a pedal releasing the indexing to allow a rotation on a ball crown. This crown brings a reliability and a safety meeting the European standards. The 2 hydraulic lifting tables have a capacity of 1300 kg each and an elevation of 1140 mm from the ground. This turntable allows easy access to the parts.
THE CHARACTERISTICS OF THE TURNTABLE WITH 2 LIFTING TABLES:
•Maximum load (CMU): 1,300 kg per lifting table;
•Rotation system: 360° orientation crown ;
•Overall length: 2210 mm ;
•Overall width: 2155 mm ;
•Overall height: 1141 mm ;
•Plateau length: 1600 mm ;
•Tray width: 1000 mm ;
•Loading height: 366 mm ;
•Drain: 4 corner drains on each lifting table;
•Stroke: 775 mm ;
PROTECTIONS:
•Rotation lock system: mechanical lock with pedal release;
•Safety crutches;
•Pilot operated valves at the foot of the cylinders;
•Quick stop;
•Safety bands and accordion gussets;
•Side panels : 2 fixed sheets ;
•Pictograms;
ELECTRIC:
•Power supply: 400V tri / 24Vac control circuit;
•Cabinet / desk : 2 cabinets / 2 control desks ;
•Buttons / Indicators: up / down / quick stop ;
