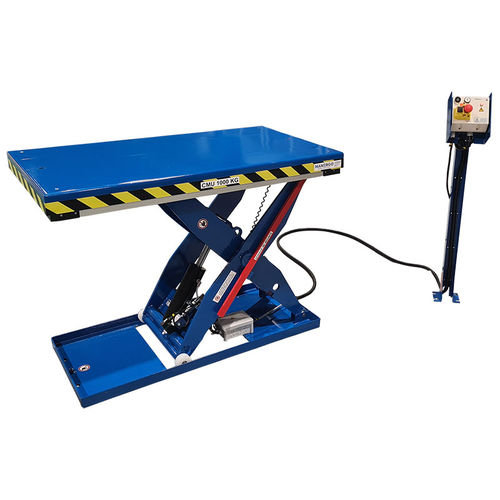

Scissor lift table TE100-135-080-4292

hydraulicelectricstationary

This 1000 kg lifting table, reference TE100-135-080-4292, is quite classical. The lifting is done by hydraulic energy by a simple support on the control post. This 1000 kg lifting table meets all European requirements to ensure the safety of the operators. The smooth and custom sized platform allows to handle all types of parts in an ergonomic position. THE CHARACTERISTICS OF THE 1000 KG LIFTING TABLE: •Elevation: 800 mm ; •Overall height: 205 mm ; •Plateau length: 1350 mm ; •Loading height: 205 mm ; •Descent time : 15 s ; •Smooth top ; PROTECTIONS: •Safety stand; •Safety band; •Cylinder safety valve ; •Emergency stop; ELECTRIC: •Power supply: 400V tri / 24Vac control circuit; •Control desk: post with 3 m cable; •Buttons / Indicators: up / down / emergency stop / power indicator ; HYDRAULICS: •Hydraulic unit: calibrated, sealed and integrated into the table; •Hydraulic actuator: single acting cylinder.
