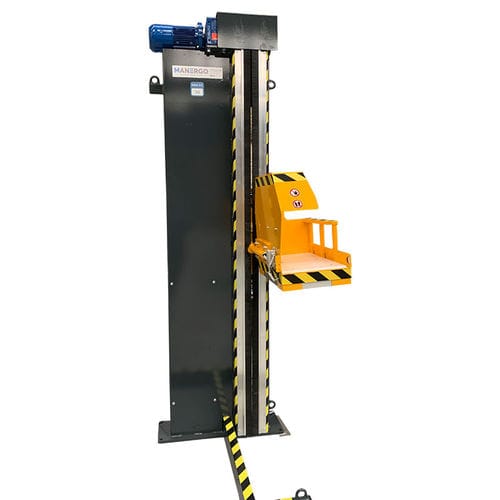

Electric metal lifting and turning device MER125°005-055-035-1750-3851-2

for boxes

This 125° rotation mast, reference MER125°005-055-035-1750-3851-2, allows to empty boxes containing products and to put them directly in a hopper. Thanks to its steel receptacle and a 125° rotation, the flow of the products present in the box is thus favored. As the repetition of physical tasks can lead to occupational diseases, the 125° rotation lifting mast helps to reduce RSI. CHARACTERISTICS OF THE MAST ELEVATION ROTATION 125°: •Maximum load (CMU): 50 kg at 0.150 m from the deck; •Tilt: 125°; •Overall length: 1155 mm ; •Overall width: 986.5 mm ; •Overall height: 2580 mm ; •Dumping height: 1750 mm ; •Loading height: 840 mm ; •Rise time : 6 s ; •Descent time : 6 s ; PROTECTIONS: •Safety chain; •Quick stop; •Pictograms; •Anti-crushing sensor; •Adaptable speed according to the area; •Remote box ; •Security cashier position; ELECTRIC: •Power supply: 230V mono / 24V control circuit; •Cabinet / desk : 1 electrical cabinet / 1 operator control desk ; •Buttons / Indicators : maintained ascent / maintained descent / fast stop / movement authorization / 1 detection of low position / 1 detection of high position.
