Transformer current sensor SCT-075R
ACsplit-core

transformer current sensor
transformer current sensor
Add to favorites
Compare this product


Characteristics

Technology
transformer
Electrical characteristics
AC
Other characteristics
split-core
Primary current

50 A, 100 A, 200 A, 250 A

Description

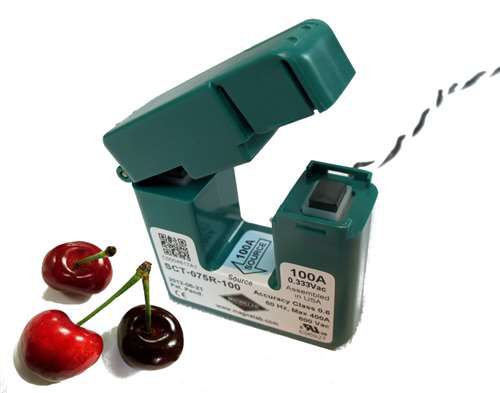

SCT-075R Split Core Current Sensor The SCT-075R Split Core Current Sensor Series are classed as having a C57.13 accuracy class 0.6 according to ANSI revenue grade. They offer a superior phase angle of 0.25 degrees and unequaled linearity that is rare in other types of AC current sensors. It has a maximum capacity of 250 amperes passing through the center conductor. The input of up to 250 amperes is transformed by this split core CT into a 0.333 Volt output. SCT-075R | Features •Linearity accuracy ± 0.5% •Phase angle ± 0.25% •Rated input up to 250 Amps •Accuracy at 10% to 120% of rated current •Operates from 30 Hz to 1,000 Hz •8 ft. twisted-pair lead •UL Listed, CE, and RoHS compliant •Maximum Voltage: 600V (on bare conductor) •Output 0.333 Volt AC at rated current SCT-075R |Description These types of transformers are particularly suitable for installation on electrical wiring that haved already been installed. This is because it can simply snap around the said conductor and it has a self-locking mechanism. The maximum voltage for the bare conductor is 600 volts. The SCT-075R is available in 50, 100, 200 and 250 ampere ratings and it is has a 0.79 inch wide opening. Meanwhile, a similar product that also has a rated output of 0.333 volt is the SCT-3000 split core current transformer but can accommodate up to 3000 amperes. The current transformer design for the SCT-075R gives it a linearity accuracy of 0.5 percent either way. This allows estimated calculations to be very close to the actual results. This accuracy is maintained at 10 percent to 120 percent of the rated current. Its phase angle is 0.25 degrees and it has an up to 250 amperes rated input.
