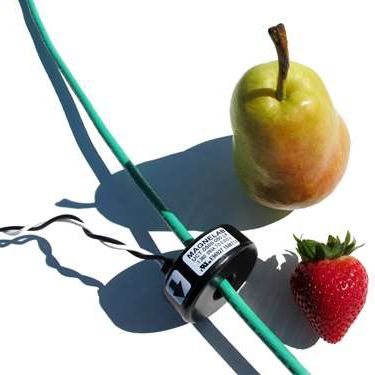

Toroidal current sensor UCT-0500 series
ACsolid-coreprecision

toroidal current sensor
toroidal current sensor
Add to favorites
Compare this product


Characteristics

Technology
toroidal
Electrical characteristics
AC
Other characteristics
solid-core, precision
Primary current

Max.: 60 A

Min.: 5 A

Description

Solid-Core AC Current Sensor UCT-0500 Magnelab UCT-0500 Series are better than one percent accuracy and less than one degree phase angle. Output is controlled by a precision resistor fixed at the industry standard of 0.333 Volt AC. The rugged epoxy encapsulated construction comes with eight feet twisted leads. The Magnelab UCT current sensor models are better than one percent accuracy and less than one degree phase angle. Output is controlled by a precision resistor fixed at the industry standard of 0.333 Volt AC. The rugged epoxy encapsulated construction comes with eight feet twisted leads. Revenue Grade version available with 0.5% linearity with less than 0.26° phase shift. See SPEC sheet for more details. Features Rated input current from 5 Amp to 60 Amp Output 0.333 Volt AC at rated current Phase angle < 1 degrees measured at 50% rated current Linearity accuracy ± 1% w/ accuracy at 10% to 130% of rated current 8 ft. twisted-pair lead and is UL recognized Custom output and other parameters are available Additional information Weight 0.1179340162 kg Amp Rating0, 10, 15, 20, 30, 50, 60 Input AC Output 0.333 Volt Product TypeSolid Core CT's
