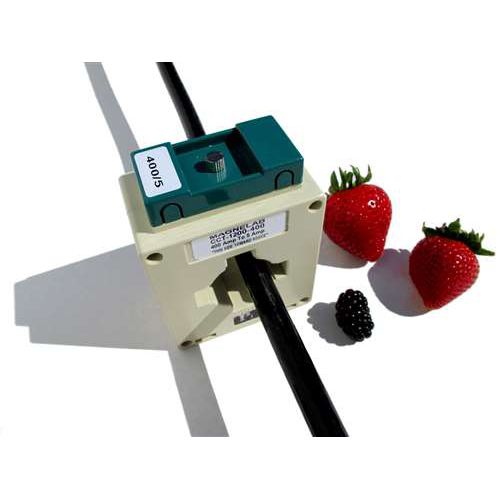

Transformer current sensor CCT-1200

AC

CCT-1200 AC Current Output Transformer 100:5 to 600:5 Amp Current Ratio – 5 Amp Output 1.65 inch Opening The Magnelab CCT-1200 AC Current Output Transformer has been designed to transform an input current of between 100A and 600A to an output of just 5A. The materials used in the current sensor are all classed as class B and are fully UL recognized. They have also passed the hi-pot test at 4,000V RMS. It has been designed to operate within the 50Hz to 400Hz frequency range. The rated load is 5VA and it has full CE marking. It is also compliant with RoHS. CCT-1200 | Features • 5A Output Current • 50Hz to 400Hz Frequency • 5VA Rate Load • CE Marking • RoHS Compliance • Other values and Specifications are Available CCT-1200 | Description The Magnelab CCT-1200 AC Current Output Transformer is a current transformer that has been designed to transform an input current of between 100A and 600A to an output of just 5A. The materials used in the current sensor are all classed as class B and are fully UL recognized. They have also passed the hi-pot test at 4,000V RMS. It has been designed to operate within the 50Hz to 400Hz frequency range. The rated load is 5VA and it has full CE marking. It is also compliant with RoHS. It comes with a full 10 year warranty. A full spec sheet has been made available for prospective customers as well. Meanwhile, a related product is the ACT-0036 current transformer is a split core current sensor with a 36mm opening. This transforms a 200 to 600 Amps current input to a 5 Amp output. These types of transformers are perfectly suitable for installations on electrical wires that are already in place.
