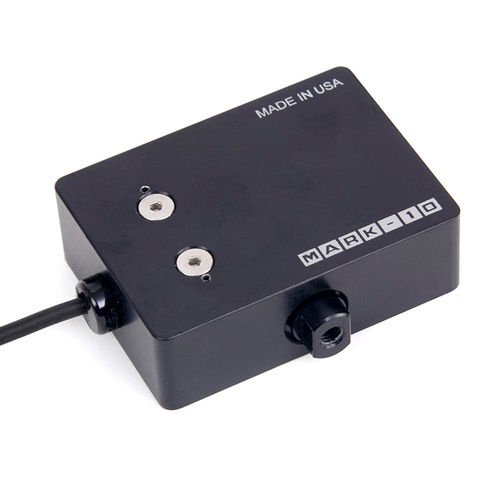

Tension/compression load cell R03 series

block typecapacitiverugged

Series R03 smart sensors are designed for tension and compression measurement applications in virtually every industry. Threaded holes on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests. Capacities available from 0.25 to 100 lbF [1 to 500 N]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test™. Compatible with Mark-10 indicators, (sold separately) through unique Plug & Test® technology. A combined certificate for the sensor and an indicator is available at time of order at no charge, part no. CERT-SI. Features and specifications •Member of the Plug & Test™ family of interchangeable sensors and indicators •Rugged aluminum housing •Measures tensile and compressive forces •NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge. •Accuracy: ± 0.15% of full scale + indicator •Weight: 0.4 lb (0.2 kg) •Warranty: 3 years
