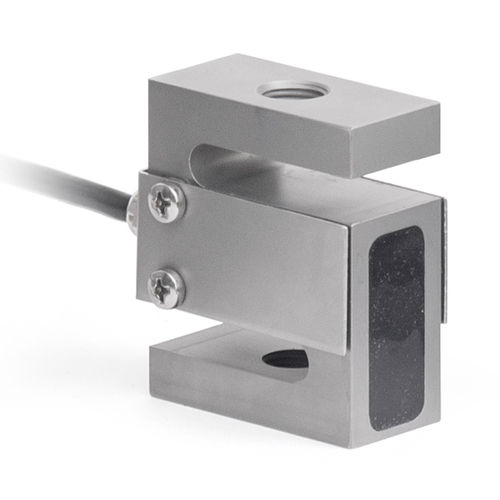

S-beam force sensor R07 series

tensioncompressionfor calibration

Series MR07 force sensors measure tension and compression forces, and are designed for Series F test frames. With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator. Ranges available from 50 to 1,500 lbF [250 N to 7.5 kN]. Compatible with Models F755, F755S, F1505, and F1505S test frames. Not compatible with Models F105, F305, F505, and F505H. • Measure tension and compression force • Compatible with Models F755, F755S, F1505, and F1505S test frames • Member of the Plug & Test® family of interchangeable sensors and indicators • NIST-traceable certificate of calibration with data is included • Accuracy: ± 0.15% of full scale + indicator or test frame • Safe Overload: 150% of full scale • Weight: MR07-50 – MR07-200: 1 lbs [0.5 kg] MR07-300 – MR07-1000: 2 lbs [0.9 kg] MR07-1500: 3 lbs [1.4 kg] • Shipping weight: MR07-50 – MR07-300: 2 lbs [0.9 kg] MR07-500 – MR07-1000: 3 lbs [1.4 kg] MR07-1500: 4 lbs [1.8 kg]
