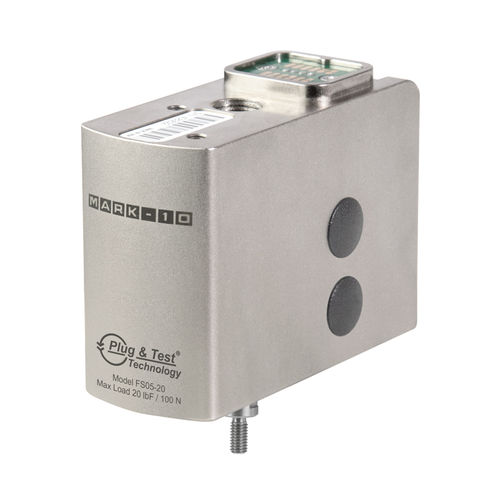

Tension force sensor FS05 Series

compressionfor calibration

Series FS05 force sensors measure tension and compression forces. They mount directly to the crosshead of models F105, F305, F505, and F505H test frames, for a clean, integrated look. With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter: AC1083 required ). Ranges available from 0.12 to 500 lbF [0.5 N to 2.5 kN]. • Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables • Member of the Plug & Test® family of interchangeable sensors and indicators (adapter required) • Measure tension and compression force • NIST-traceable certificate of calibration with data is included • Accuracy: ± 0.1% of full scale + indicator or test frame • Safe Overload: 150% of full scale • Weight: FS05-012 – FS05-100: 1 lb [0.5 kg] FS05-200 – FS05-500: 2 lb [0.9 kg] • Shipping weight: FS05-012 – FS05-100: 2 lb [0.9 kg] FS05-200 – FS05-500: 3 lb [1.4 kg]
