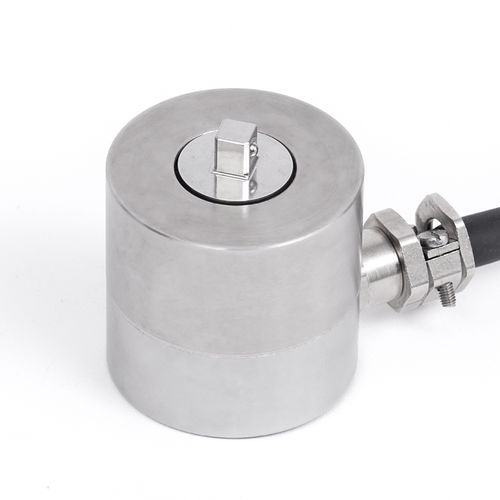

Square drive torque sensor R55 Series

rotaryruggedOEM

This rugged series of torque sensors is ideal for a wide range of torque testing applications in numerous industries. Square drives on both ends permit inline use with a torque wrench, or for use in OEM and other applications. Ranges available up to 5,000 lbFin (550 Nm). A combined certificate for the sensor and an indicator is available at time of order at no charge, part no. CERT-SI. Compatible with Mark-10 indicators, (sold separately) through unique Plug & Test® technology. A combined certificate for the sensor and an indicator is available at time of order at no charge, part no. CERT-SI. • Rugged cylindrical design • Square drives on each end • Member of the Plug & Test® family of interchangeable sensors and indicators • Stainless steel and aluminum construction • NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge. • Accuracy: ±0.6% of full scale + indicator • Weight:MR55-20 – MR55-1000: 1.3 lb [0.6 kg / MR55-5000: 1.9 lb [0.9 kg] • Shipping weight: MR55-20 – MR55-1000: 3 lb [1.4 kg] / MR55-5000: 4 lb [1.8 kg]
