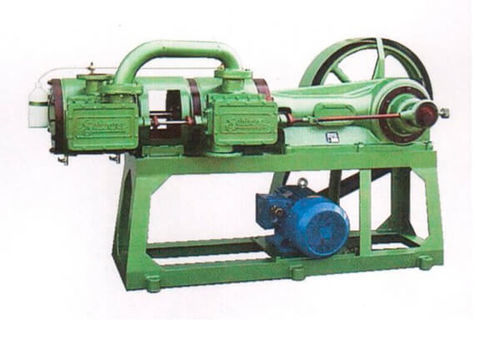

Piston pump Subirana-B2PG400

stationaryfor the cosmetics industryfor the rubber industry

The Subirana BP series are two-stage piston pumps. The piston pumps in the Marpa Vacuum Subirana series are ideal for the major chemical and pharmaceutical processes. Our proprietary technology combines a simple and traditional design without sacrificing the pump’s most important feature: robustness. It is built to work 24 hours a day, year after year, with next-to-no maintenance. It consumes virtually no oil. - Applications: - Chemical industry - Pharmaceutical industry - Cosmetics industry - Plastic and rubber industry - Food industry - Oil and Gas - Biosciences - Waste treatment - Technical Specifications: - Technical data: Units: 50 Hz - Flow rate: m³/h: 400 - Ultimate pressure: mbar: 0.66 - Ultimate pressure with a roots pump: mbar: 0.08 - Ultimate pressure with two roots pumps: mbar: 0.03 - Motor power: kW: 14.5 - Nominal motor speed: rpm: 200 - Weight: kg: 980 - Two-stage piston pump - Virtually oil-free operation - Designed for continuous operation (24/7) - Minimal maintenance required - Robust and traditional design
