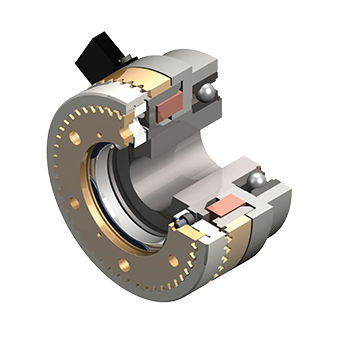

Mechanical torque limiter 546 compact
Add to favorites
Compare this product
Characteristics
- Operation
- mechanical
- Other characteristics
- compact
- Torque
Max.: 1,400 Nm
(1,032.587 ft.lb)Min.: 18 Nm
(13.2761 ft.lb)- Diameter
Max.: 195 mm
(7.68 in)Min.: 58 mm
(2.28 in)- Rotational speed
1,500 rpm, 2,000 rpm, 2,300 rpm, 2,500 rpm, 3,000 rpm
(9,424.78 rad.min-1, 12,566.37 rad.min-1, 14,451.33 rad.min-1, 15,707.96 rad.min-1, 18,849.56 rad.min-1)
Description
the torque can be easily influenced by varying the voltage - an advante over mechanical clutches
special solutions on request
high torque transfer despite compact dimensions
specially developed overload tooth system
quickly and reliably disengaging
micoscopic movements under critical conditions and hence wear are ruled out
high range of temperatures
with fixed-point
