Water hose ABRASPIR
rubberdischargefor marine applications

water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water
Material
rubber
Applications
discharge, for marine applications
Other characteristics
abrasion-resistant, weather-resistant, smooth, anti-static, vacuum, corrugated, spiral wire
Inner diameter

Max.: 305 mm (12.008 in)

Min.: 80 mm (3.15 in)

Outer diameter

Max.: 340 mm (13.386 in)

Min.: 112 mm (4.409 in)

Pressure

Max.: 1,000,000 Pa (145.038 psi)

Min.: 0 Pa (0 psi)

Temperature

Max.: 70 °C (158 °F)

Min.: -40 °C (-40 °F)

Description

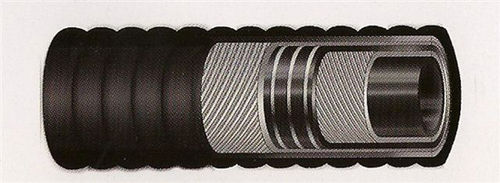

Rubber hose SBR / NR anti-abrasive and anti-static resistivity of less than 10 to the sixth Ohm / m. Inner tube smooth black rubber highly anti-abrasive textile yarn reinforcement and steel spiral and copper braid for grounding incorporated. Cover black smooth antistatic cloth impression abrasion and weathering. Application: Suction and discharge abrasive materials dried and mixed water as sand and gravel cement and concrete. Standards: loss of abrasion of the substrate according to DIN 53516 50 +/- 5 mm 3. Maximum working pressure of 10 bar, 30 bar burst. Operating temperature: -40 ° + 70 ° C. Rolls: 40 meters up to the inner diameter of less than 152 or 12 meters. Available on request in other diameters and pressures, in the form of corrugated or wavy with end sleeves. Can be supplied complete with fittings and flanges according to UNI 2277 PN 10. Technical data indicative and subject to change, ask any executions of specification: VACUUM CLEANER FOR INDUSTRIAL, BITUMEN HOT, OIL, OVERHEAD, DRAGHE MARINE, HOT ASHES, EVEN IN VERSION FOOD.
