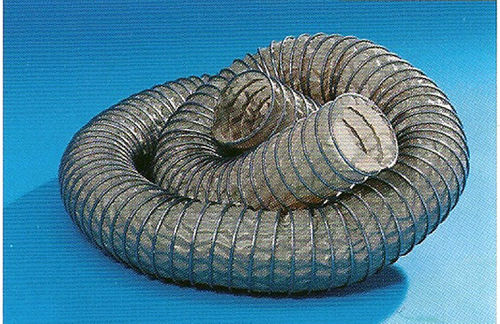

Gas hose FLEX HTfabricPTFEfiberglass
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Material
- fabric, PTFE, fiberglass
- Applications
- high-temperature, conveying
- Other characteristics
- oil-resistant, chemical-resistant, lightweight, flexible, reinforced, insulating, spiral wire, large
- Inner diameter
Min.: 50 mm
(1.969 in)Max.: 508 mm
(20 in)- Pressure
Min.: 0.02 bar
(0.29 psi)Max.: 0.85 bar
(12.328 psi)- Temperature
Min.: -150 °C
(-238 °F)Max.: 250 °C
(482 °F)
Description
Hose extremely light, made from a fabric of glass fiber very resistant coated on both sides of PTFE reinforced by a spiral outer hot-galvanized steel.
Very flexible, has a large axial compressibility up to 16% of its extended length.
Its excellent resistance to high and low temperatures: -150 ° to + 250 ° C.
Excellent sealing mineral oil or fats and other chemicals, in particular to atmospheric agents. Gray color of the walls.
Standard length 3 meters or 6 meters.
Occupation: conveying aggressive gases at high and low temperatures, suction gas alcohols and solvents, fumes aggressive chemicals, maintenance chemicals, wood and paper.
Outer surface strongly anti-adhesive, condensation.
Avoided by the cyclical movements due to its mechanical fragility.
Special versions on request: with insulating mat fiberglass
Diameters of production: 50-60-76-80-102-110-120-127-152-160-180-203-254-305-350-407-508.
