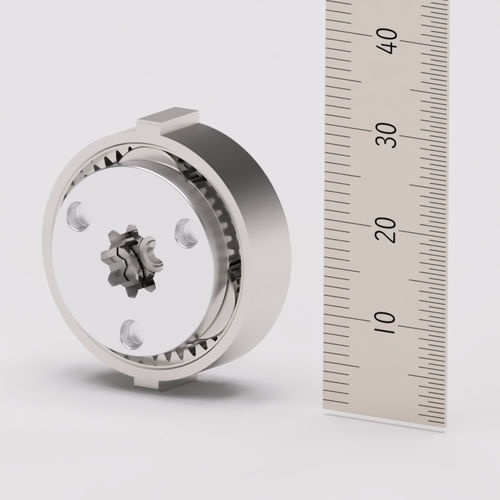

Planetary gear reducer LGU26-Scoaxialsplined1 - 5 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- splined
- Torque
- 1 - 5 Nm
- Configuration
- compact, modular
- Number of stages
- single-stage, multi-stage
- Performance
- low-noise, high-efficiency, high-torque
- Applications
- for food industry machinery, for robots, industrial, machine, for medical devices, for automotive applications, for conveyor, for machine tools, for material handling equipment, for AGV, for actuators, for doors
- Other characteristics
- custom-made, universal
- Rotational speed
Max.: 1,000 rpm
(6,283.1853 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
Max.: 83.8 W
(0.11 hp)Min.: 2.1 W
(0 hp)- Gear ratio
4.5 unit
- Weight
Max.: 22 g
(0.78 oz)Min.: 21 g
(0.74 oz)
Description
LGU26-S series compact Planetary Gear Reducer
Features:
-Compact size (φ26mm)
-Lightweight
-High design freedom
-Stackable for flexible multi-stage designs
Specifications:
-Output Torque: 2Nm
-Input Speed: 4500rpm
-Output Speed: 1000rpm
-Ratio: 4.5:1
-Weight: 21~22g
-Material: Sintered Steel
Options:
-Available Models: LGU26-5SAS4, LGU26-5SAI4, LGU26-5SYS4, LGU26-5SYI4 (see catalog)
-Input Shape: D Cut hole/Spur Gear
-Output Shape: Internal Gear/Involute Spline Hole
-Price: Calculated based on lot size and specific model.
Other:
-Brand Name: Matex
-Origin: Japan
Features:
-Compact size (φ26mm)
-Lightweight
-High design freedom
-Stackable for flexible multi-stage designs
Specifications:
-Output Torque: 2Nm
-Input Speed: 4500rpm
-Output Speed: 1000rpm
-Ratio: 4.5:1
-Weight: 21~22g
-Material: Sintered Steel
Options:
-Available Models: LGU26-5SAS4, LGU26-5SAI4, LGU26-5SYS4, LGU26-5SYI4 (see catalog)
-Input Shape: D Cut hole/Spur Gear
-Output Shape: Internal Gear/Involute Spline Hole
-Price: Calculated based on lot size and specific model.
Other:
-Brand Name: Matex
-Origin: Japan
