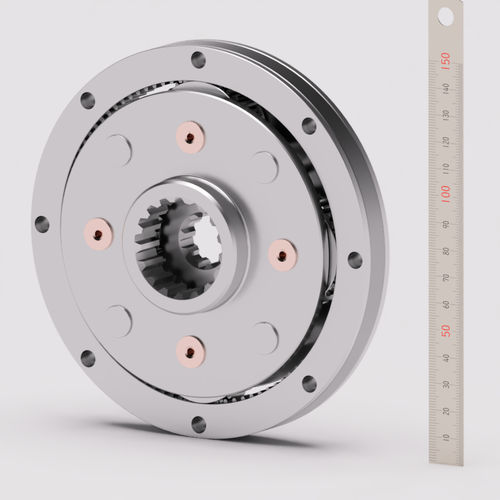

Planetary gear reducer LGU146-M20coaxialsplined500 - 1000 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- splined
- Torque
- 500 - 1000 Nm
- Configuration
- compact, modular
- Number of stages
- single-stage, multi-stage
- Performance
- low-noise, high-efficiency, high-torque, high-rigidity, high-power, for heavy loads
- Applications
- transmission, drive, machine, for machinery, winch, for height adjustment, for industrial applications, for the paper industry, for lifting applications, for cutting machines, industrial, for electric motors, for wind turbine, for pump, for conveyor, for machine tools, for the food industry, for AGV, for machines, for marine applications, for vehicles, for heavy-duty applications, for heavy handling equipment, wheel, for automotive applications
- Other characteristics
- custom-made, large, high-quality
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 800 rpm
(5,026.5482 rad.min-1)- Power
Min.: 0.57 kW
(0.77 hp)Max.: 15.07 kW
(20.49 hp)- Gear ratio
3 unit, 4 unit, 5 unit
Min.: 3 unit
Max.: 5 unit
- Weight
Min.: 2.6 kg
(5.73 lb)Max.: 3 kg
(6.61 lb)
Description
LGU146-M20 series high-torque Planetary Gear Reducer
Features:
-High-torque
-High efficiency
-Low noise
-High design freedom
-Stackable for flexible multi-stage designs
Specifications:
-Outer Diameter: φ146mm
-Output Torque: 540Nm
-Input Speed: 2400rpm, 3200rpm, 4000rpm
-Output Speed: 800rpm
-Ratio: 3:1, 4:1, 5:1
-Weight: 2.6~3.0kg
-Material: Machined Steel
Options:
-Available Models: LGU146-3MEF20, LGU146-4MEF20, LGU146-5MEF20, LGU146-3MFF20 (see catalog)
-Input Shape: Involute Spline Hole
-Output Shape: Involute Spline Hole
-Price: Calculated based on lot size and specific model.
Other:
-Brand Name: Matex
-Origin: Japan
Features:
-High-torque
-High efficiency
-Low noise
-High design freedom
-Stackable for flexible multi-stage designs
Specifications:
-Outer Diameter: φ146mm
-Output Torque: 540Nm
-Input Speed: 2400rpm, 3200rpm, 4000rpm
-Output Speed: 800rpm
-Ratio: 3:1, 4:1, 5:1
-Weight: 2.6~3.0kg
-Material: Machined Steel
Options:
-Available Models: LGU146-3MEF20, LGU146-4MEF20, LGU146-5MEF20, LGU146-3MFF20 (see catalog)
-Input Shape: Involute Spline Hole
-Output Shape: Involute Spline Hole
-Price: Calculated based on lot size and specific model.
Other:
-Brand Name: Matex
-Origin: Japan
VIDEO
Catalogs
LGU146-M20
2 Pages
