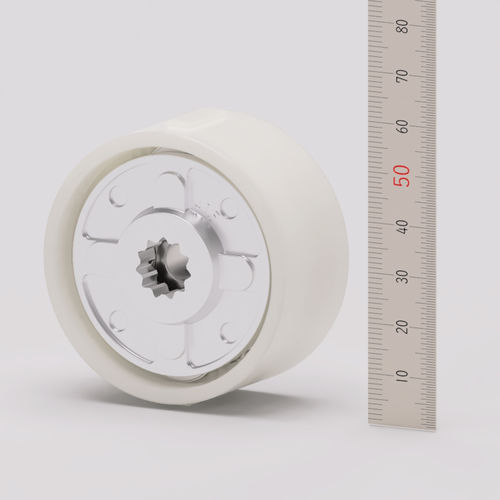

Planetary gear reducer LGU54-P/Ccoaxialsplined1 - 5 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- splined
- Torque
- 1 - 5 Nm, 5 - 10 Nm
- Configuration
- compact, modular, with plastic housing
- Number of stages
- single-stage, multi-stage
- Performance
- low-noise, high-efficiency, high-torque
- Applications
- for industrial applications, industrial, for medical devices, for machines, for machinery, for actuators, for vehicles, for doors, electronic equipment
- Other characteristics
- custom-made
- Rotational speed
Max.: 1,000 rpm
(6,283.1853 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
Max.: 251.33 W
(0.34 hp)Min.: 3.04 W
(0 hp)- Gear ratio
Max.: 6 unit
Min.: 4 unit
4 unit, 5 unit, 6 unit
- Weight
Max.: 130 g
(4.59 oz)Min.: 100 g
(3.53 oz)
Description
LGU54-P/C series lightweight Planetary Gear Reducer
Features:
-Compact size (φ54mm)
-Lightweight
-High design freedom
-Stackable for flexible multi-stage designs
Specifications:
-Output Torque: 2.9~9.8Nm
-Input Speed: 4000~6000rpm
-Output Speed: 1000rpm
-Ratio: 4:1, 5:1, 6:1
-Weight: 100~130g
-Material: Plastic
Options:
-Available Models: LGU54-4PAD, LGU54-5PAD, LGU54-6PAD, LGU54-4PLD, LGU54-5PLD, LGU54-4CLD (see catalog)
-Input Shape: D Cut hole/Serration Shaft
-Output Shape: Serration Hole
-Price: Calculated based on lot size and specific model.
Other:
-Brand Name: Matex
-Origin: Japan
Features:
-Compact size (φ54mm)
-Lightweight
-High design freedom
-Stackable for flexible multi-stage designs
Specifications:
-Output Torque: 2.9~9.8Nm
-Input Speed: 4000~6000rpm
-Output Speed: 1000rpm
-Ratio: 4:1, 5:1, 6:1
-Weight: 100~130g
-Material: Plastic
Options:
-Available Models: LGU54-4PAD, LGU54-5PAD, LGU54-6PAD, LGU54-4PLD, LGU54-5PLD, LGU54-4CLD (see catalog)
-Input Shape: D Cut hole/Serration Shaft
-Output Shape: Serration Hole
-Price: Calculated based on lot size and specific model.
Other:
-Brand Name: Matex
-Origin: Japan
