Planetary gearhead LGH75 series
coaxialhollow-shaft1 - 5 Nm

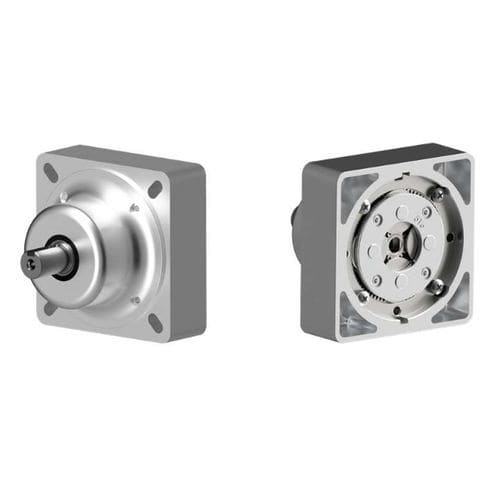

Planetary gearhead - LGH75 series - MATEX - coaxial / hollow-shaft / 1 - 5 Nm
Planetary gearhead - LGH75 series - MATEX - coaxial / hollow-shaft / 1 - 5 Nm
Planetary gearhead - LGH75 series - MATEX - coaxial / hollow-shaft / 1 - 5 Nm - image - 2
Planetary gearhead - LGH75 series - MATEX - coaxial / hollow-shaft / 1 - 5 Nm - image - 3
Planetary gearhead - LGH75 series - MATEX - coaxial / hollow-shaft / 1 - 5 Nm - image - 4
Planetary gearhead - LGH75 series - MATEX - coaxial / hollow-shaft / 1 - 5 Nm - image - 5
Planetary gearhead - LGH75 series - MATEX - coaxial / hollow-shaft / 1 - 5 Nm - image - 6
Add to favorites
Compare this product
Go to the MATEX website for more information

Characteristics

Type
planetary
Shaft orientation
coaxial
Shaft configuration
hollow-shaft
Torque
1 - 5 Nm, 10 - 20 Nm, 20 - 50 Nm, 5 - 10 Nm
Mounting
flange-mounted
Configuration
compact
Number of stages
single-stage, multi-stage
Performance
high-torque, low-noise
Applications
for automation, for industrial applications, for robots, for electric motors, for pump, for material handling equipment, for tools
Other characteristics
custom-made
Rotational speed

Max.: 5,000 rpm
(31,415.9265 rad.min-1)

Min.: 10 rpm
(62.8319 rad.min-1)

Power

Max.: 1,780 W
(2.42 hp)

Min.: 90 W
(0.12 hp)

Gear ratio

Max.: 125 unit

Min.: 3 unit

Weight

Max.: 2.04 kg
(4.5 lb)

Min.: 0.73 kg
(1.61 lb)

Description

Planetary Gear Reducer LGH Series
Compact gearhead for various applications

Specifications:
-Max. input rotation: 5000rpm
-Max. nominal torque: depends on configuration, 22.6Nm and 34Nm are most common (see catalog)
-Reduction ratios: 3~125 (freely selected)
