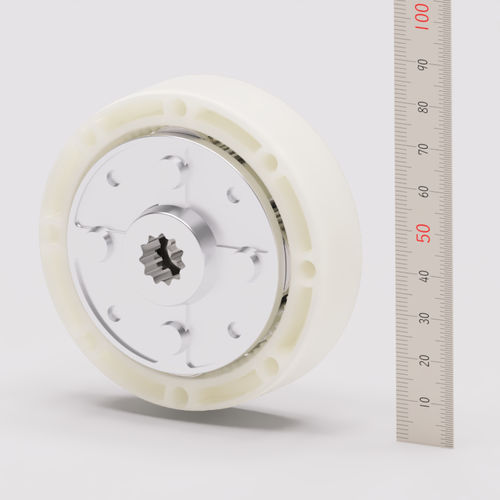

Planetary gear reducer LGU75-P13coaxialsplined5 - 10 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- splined
- Torque
- 5 - 10 Nm
- Configuration
- compact, modular, with plastic housing
- Number of stages
- single-stage, multi-stage
- Performance
- low-noise, high-efficiency, high-torque
- Applications
- industrial, for industrial applications, for medical devices, for machines, for machinery, for actuators, for marine applications, for vehicles, for automotive applications, for shafts, for hoist units
- Other characteristics
- custom-made
- Rotational speed
Max.: 1,000 rpm
(6,283.1853 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
Max.: 366.52 W
(0.5 hp)Min.: 9.22 W
(0.01 hp)- Gear ratio
4.8 unit
- Weight
190 g
(6.7 oz)
Description
LGU75-P13 series strong plastic Planetary Gear Reducer
Features:
-Lightweight
-High-strength for plastic reducer
-High design freedom
-Stackable for flexible multi-stage designs
Specifications:
-Outer Diameter: φ75mm
-Output Torque: 8.8Nm
-Input Speed: 4800rpm
-Output Speed: 1000rpm
-Ratio: 4.8:1
-Weight: 190g
-Material: Plastic
Options:
-Available Models: LGU75-5PAD13, LGU75-5PJD13 (see catalog)
-Input Shape: D Cut Hole/Serration Hole
-Output Shape: Serration Hole
-Price: Calculated based on lot size and specific model.
Other:
-Brand Name: Matex
-Origin: Japan
Features:
-Lightweight
-High-strength for plastic reducer
-High design freedom
-Stackable for flexible multi-stage designs
Specifications:
-Outer Diameter: φ75mm
-Output Torque: 8.8Nm
-Input Speed: 4800rpm
-Output Speed: 1000rpm
-Ratio: 4.8:1
-Weight: 190g
-Material: Plastic
Options:
-Available Models: LGU75-5PAD13, LGU75-5PJD13 (see catalog)
-Input Shape: D Cut Hole/Serration Hole
-Output Shape: Serration Hole
-Price: Calculated based on lot size and specific model.
Other:
-Brand Name: Matex
-Origin: Japan
