Pipe hydraulic clamp 01 series

Product Overview

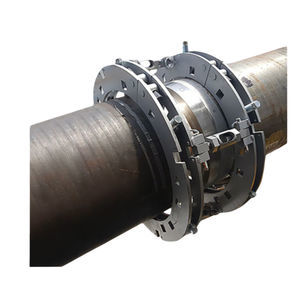

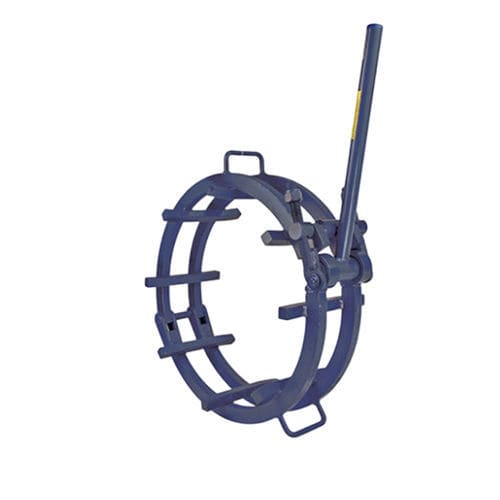

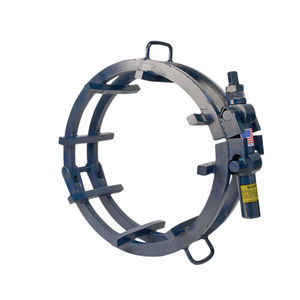

Mathey Dearman cage clamps are available in manual hand lever, ratchet, and hydraulic models, in tack or no-tack versions. They align pipe for welding through Schedule 80 and cover pipe sizes 2"–60" / 60.3–1,524 mm.

Usage Notes
Cage clamps are for pipe alignment only and are not designed to reform pipe. Each clamp size fits one specific pipe diameter. If the pipe o/d varies more than ±3/16" / 5 mm from the indicated clamp diameter, accurate alignment may not be achieved.

Product Advantages

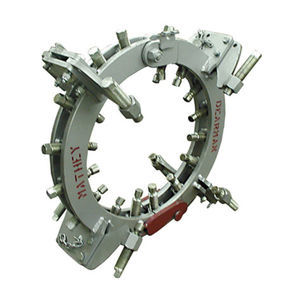

• Stainless-steel contact points and odd-size clamp options available on request. Add "SS" to the part number for stainless contact points.
• No-tack cross bars are arched to permit full-circle welding without removing the clamp, facilitating continuous welds.
• Tack-type straight cross bars have flared ends to ease positioning and clamping; remove the clamp after tack welding to complete the weld.
• Both tack and no-tack cross bars can be supplied in stainless steel for stainless and other specialty alloy applications.

Table — Manual Lever Tack Model / Pipe Size
MANUAL LEVER TACK MODEL | PIPE SIZE
01.0505.001 — 2" / 60.3 mm
01.0505.002 — 3" / 88.9 mm
01.0505.003 — 3.5" / 101.6 mm
01.0505.004 — 4" / 114.3 mm
01.0505.006 — 6" / 168.2 mm
01.0505.008 — 8" / 219 mm
01.0505.010 — 10" / 273 mm
01.0505.012 — 12" / 323.8 mm
01.0505.014 — 14" / 356 mm
01.0505.016 — 16" / 406 mm
01.0505.018 — 18" / 457 mm
01.0505.020 — 20" / 508 mm
01.0505.022 — 22" / 559 mm
01.0505.024 — 24" / 610 mm
01.0505.026 — 26" / 660 mm
01.0505.028 — 28" / 711 mm
01.0505.030 — 30" / 762 mm
01.0505.032 — 32" / 813 mm
01.0505.034 — 34" / 864 mm
01.0505.036 — 36" / 914 mm
01.0505.038 — 38" / 965 mm
01.0505.040 — 40" / 1,016 mm
01.0505.042 — 42" / 1,067 mm
01.0505.048 — 48" / 1,219 mm
01.0505.054 — 54" / 1,372 mm
01.0505.060 — 60" / 1,524 mm

Technical specifications

• Range: 2"–60" / 60.3–1,524 mm
• Models available: manual hand lever, ratchet, hydraulic
• Versions: tack and no-tack cross bars
• Intended use: pipe alignment only (not for pipe reforming)
• Fit tolerance: ±3/16" / 5 mm
• Pipe schedule compatibility: aligns through Schedule 80
• Material options: stainless-steel contact points and cross bars available upon request (add "SS" to part number)
• Each size clamp fits one specific pipe diameter
