Clamp R0 series

Product overview

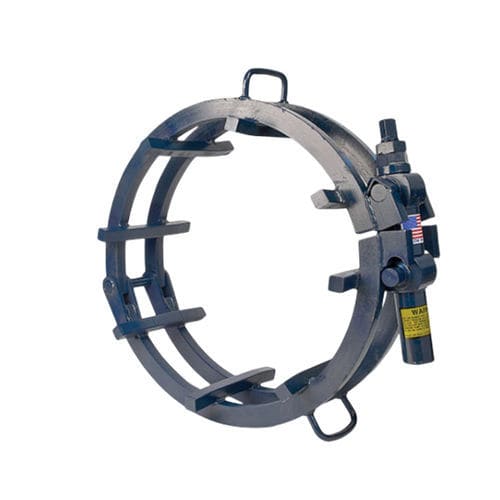

The Mathey Dearman Ratchet Cage Clamp uses a ratchet closure system to deliver the additional force required to align large-diameter pipes. Designed for pipe diameters from 14 – 60" (356 – 1,524 mm). Ratchet sold separately.

Availability
ONLY STOCKED IN AMERICAS.

Product advantages

• AVAILABLE UPON REQUEST
• No-tack cross bars are arched to permit a full-circle weld without removing the clamp, improving weld continuity and efficiency.
• CAGE CLAMP CROSS BAR DESIGNS
• Tack-type straight cross bars have flared ends to allow pipes to be moved into position and clamped; clamp is removed after tack welding to complete the weld.
• Cross bars are available in stainless steel for stainless and other specialty alloy applications.

Ratchet must be ordered separately
Ratchet assemblies and handles are not included and must be ordered in addition to the cage clamp.

Specifications - Ratchet Tack Models / Pipe Sizes
RATCHET TACK MODEL | PIPE SIZE INCH | PIPE SIZE MM
01.0505.R06 | 6" | 168.2 mm
01.0505.R08 | 8" | 219 mm
01.0505.R10 | 10" | 273 mm
01.0505.R12 | 12" | 323.8 mm
01.0505.R14 | 14" | 356 mm
01.0505.R16 | 16" | 406 mm
01.0505.R18 | 18" | 457 mm
01.0505.R20 | 20" | 508 mm
01.0505.R22 | 22" | 559 mm
01.0505.R24 | 24" | 610 mm
01.0505.R26 | 26" | 660 mm
01.0505.R28 | 28" | 711 mm
01.0505.R30 | 30" | 762 mm
01.0505.R32 | 32" | 812 mm
01.0505.R34 | 34" | 864 mm
01.0505.R36 | 36" | 914 mm
01.0505.R38 | 38" | 965 mm
01.0505.R40 | 40" | 1,016 mm
01.0505.R42 | 42" | 1,067 mm
01.0505.R48 | 48" | 1,219 mm

Ratchet handle options
01.0505.R01 | Ratchet Handle 3/4" (4 – 8" clamp)
01.0505.R02 | Ratchet Handle 7/8" (10 – 42" clamp)
01.0505.R03 | Ratchet Handle 1" (44"+ clamp)

Technical specifications

• Model name: Ratchet Cage Clamp
• Brand: Mathey Dearman
• Range: 14 – 60" / 356 – 1,524 mm (specific ratchet tack models listed from 6" to 48" with model codes)
• Ratchet sold separately; handle options: 3/4", 7/8", 1" mapped to clamp size ranges
• Cross bar designs: no-tack (arched) and tack-type straight (flared ends)
• Cross bars available in stainless steel for stainless and specialty alloy applications (available upon request)
• No-tack design permits a full-circle weld without removing the clamp
• Stocking: Only stocked in Americas
