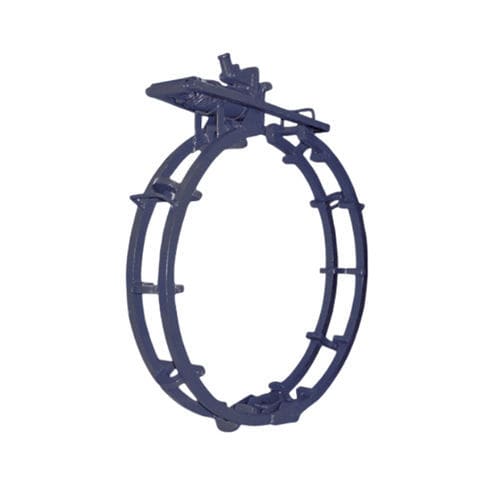

Pipe hydraulic clamp H series

Product Description
Mathey Dearman’s Hydraulic cage clamp uses a rugged hydraulic closure to generate the extra force required to align large-diameter pipes and enables rapid release from the pipe for efficient handling. Available for 16–60" (406–1,524 mm) pipe diameters, the clamp supports full-circle welding when used with the appropriate cross bar option.

Availability
ONLY STOCKED IN AMERICAS

Product Advantages

• 12 ton hydraulic jack included for high clamping force
• Available upon request with multiple cross bar configurations
• No-tack (arched) cross bars permit a full-circle weld without removing the clamp, improving weld continuity and productivity
• Tack-type straight cross bars have flared ends to facilitate pipe positioning and allow removal after tack welding to complete the weld
• Cross bars available in stainless steel for use with stainless and specialty alloy pipes

Specifications (models and pipe sizes)
HYDRAULIC TACK MODEL | PIPE SIZE INCH | PIPE SIZE MM
01.0505.H16 | 16" | 406 mm
01.0505.H18 | 18" | 457 mm
01.0505.H20 | 20" | 508 mm
01.0505.H22 | 22" | 559 mm
01.0505.H24 | 24" | 610 mm
01.0505.H26 | 26" | 660 mm
01.0505.H28 | 28" | 711 mm
01.0505.H30 | 30" | 762 mm
01.0505.H32 | 32" | 812 mm
01.0505.H34 | 34" | 864 mm
01.0505.H36 | 36" | 914 mm
01.0505.H38 | 38" | 965 mm
01.0505.H40 | 40" | 1,016 mm
01.0505.H42 | 42" | 1,067 mm
01.0505.H48 | 48" | 1,219 mm
01.0505.H54 | 54" | 1,372 mm
01.0505.H60 | 60" | 1,524 mm

Technical features / Caractéristiques techniques

• Range: 16–60" (406–1,524 mm)
• Hydraulic jack: 12 ton capacity (jack included)
• Closure mechanism: rugged hydraulic closure for increased force and rapid release
• Cross bar options: no-tack (arched) and tack-type straight (flared ends)
• Cross bar materials: standard and stainless steel options for specialty alloys
• Intended use: align and reform large-diameter or damaged pipes; permits full-circle welding with appropriate cross bar selection
• Models / SKUs: 01.0505.H16, 01.0505.H18, 01.0505.H20, 01.0505.H22, 01.0505.H24, 01.0505.H26, 01.0505.H28, 01.0505.H30, 01.0505.H32, 01.0505.H34, 01.0505.H36, 01.0505.H38, 01.0505.H40, 01.0505.H42, 01.0505.H48, 01.0505.H54, 01.0505.H60
