Screw pipe clamp EZDCC series

stainless steelmetalfor twin pipes

Product Description

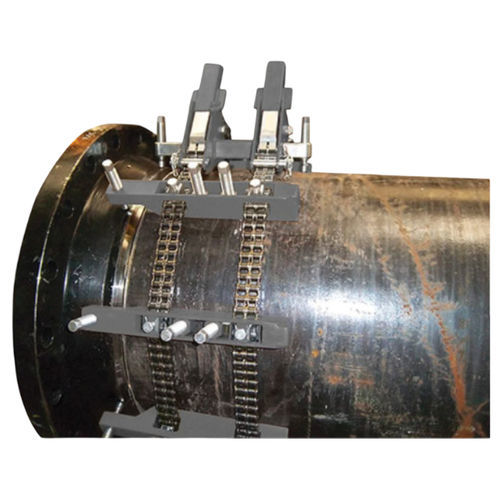

The EZ Fit Double Pipe Chain Clamp is a double-chain alignment and reforming clamp for pipes and vessels, including elbows, tees and fittings. It covers a family range from 10 in to 240 in (273–6,100 mm) and is engineered to reform pipe walls up to schedule 80. The clamp uses independent heavy-duty jackbars with triple pivoting jackscrews and double main blocks to deliver controlled reforming where single-point or cage clamps cannot.

Product Advantages

• Double-chain design for alignment and reforming across a wide diameter range
• Precision alignment — jackbars positioned around the OD provide reforming accuracy within 0.5 mm for internal and external diameters
• Capacity — reforms both sides of weld joints and accommodates wall schedules up to schedule 80, plus fittings such as elbows and tees
• Adaptability — chain clamp configuration allows alignment of elbows, tees and complex fittings that cage clamps cannot handle
• Independent jackbars — each jackbar features three pivoting jackscrews to follow uneven surfaces and shape the pipe
• Accessory compatibility — supports level and support devices; larger sizes use cable hoists

EZ Fit Double Pipe Chain Clamp includes

• Length of chain for the specified pipe range
• Extra heavy-duty jackbars specified per pipe range
• Number of main blocks specified per pipe range
• Two fine adjustments
• Level and support device (larger clamps supplied with cable hoist)
• Jackscrew wrench
• Operating instructions and durable storage case

Optional

• Torque wrench (150 Nm) for correct chain tension
• Carbon or stainless steel spacing screws
• Additional jackbars and jackscrews
• Additional chain

Specifications (table)

• EZDCC36 | 10–36 in (273–915 mm) | 9 jackbars | 1 main block | 100 kg (220 lb)
• EZDCC36SS | 10–36 in (273–915 mm) | 9 | 1 | 100 kg (220 lb)
• EZDCC48 | 10–48 in (273–1,220 mm) | 12 | 1 | 126 kg (278 lb)
• EZDCC48SS | 10–48 in (273–1,220 mm) | 12 | 1 | 126 kg (278 lb)
• EZDCC54 | 10–54 in (273–1,375 mm) | 14 | 1 | 136 kg (300 lb)
• EZDCC54SS | 10–54 in (273–1,375 mm) | 14 | 1 | 136 kg (300 lb)
• EZDCC60 | 10–60 in (273–1,525 mm) | 16 | 1 | 149 kg (328 lb)
• EZDCC60SS | 10–60 in (273–1,525 mm) | 16 | 1 | 149 kg (328 lb)
• EZDCC72 | 10–72 in (273–1,830 mm) | 20 | 1 | 176 kg (387 lb)
• EZDCC72SS | 10–72 in (273–1,830 mm) | 20 | 1 | 176 kg (387 lb)
• EZDCC84 | 10–84 in (273–2,135 mm) | 24 | 2 | 200 kg (442 lb)
• EZDCC84SS | 10–84 in (273–2,135 mm) | 24 | 2 | 200 kg (442 lb)
• EZDCC96 | 10–96 in (273–2,440 mm) | 28 | 2 | 226 kg (498 lb)
• EZDCC96SS | 10–96 in (273–2,440 mm) | 28 | 2 | 226 kg (498 lb)
• EZDCC108 | 10–108 in (273–2,745 mm) | 32 | 2 | 251 kg (554 lb)
• EZDCC108SS | 10–108 in (273–2,745 mm) | 32 | 2 | 251 kg (554 lb)
• EZDCC120 | 10–120 in (273–3,050 mm) | 36 | 2 | 277 kg (610 lb)
• EZDCC120SS | 10–120 in (273–3,050 mm) | 36 | 2 | 277 kg (610 lb)
• EZDCC132 | 10–132 in (273–3,355 mm) | 39 | 2 | 299 kg (660 lb)
• EZDCC132SS | 10–132 in (273–3,355 mm) | 39 | 2 | 299 kg (660 lb)
• EZDCC144 | 10–144 in (273–3,715 mm) | 42 | 2 | 322 kg (710 lb)
• EZDCC144SS | 10–144 in (273–3,715 mm) | 42 | 2 | 322 kg (710 lb)
• EZDCC168 | 10–168 in (273–4,270 mm) | 48 | 3 | 367 kg (810 lb)
• EZDCC168SS | 10–168 in (273–4,270 mm) | 48 | 3 | 367 kg (810 lb)
• EZDCC192 | 10–192 in (273–4,880 mm) | 54 | 3 | 410 kg (910 lb)
• EZDCC192SS | 10–192 in (273–4,880 mm) | 54 | 3 | 410 kg (910 lb)
• EZDCC216 | 10–216 in (273–5,490 mm) | 60 | 3 | 455 kg (1,010 lb)
• EZDCC216SS | 10–216 in (273–5,490 mm) | 60 | 3 | 455 kg (1,010 lb)
• EZDCC240 | 10–240 in (273–6,100 mm) | 66 | 3 | 500 kg (1,110 lb)
• EZDCC240SS | 10–240 in (273–6,100 mm) | 66 | 3 | 500 kg (1,110 lb)
• * Suitable for stainless steel. Larger sizes available upon request

Technical specifications

• Model name: EZ Fit Double Pipe Chain Clamp
• Application: Alignment and reforming of pipes and vessels, including elbows, tees and fittings
• Maximum pipe range covered: 10 in–240 in (273–6,100 mm)
• Wall schedule capability: Up to schedule 80 (reforms both sides of the weld joint)
• Alignment precision: Within 0.5 mm for internal/external diameters of both pipes
• Jackbars: Independent extra heavy-duty jackbars; each jackbar fitted with three pivoting jackscrews
• Chain options: Carbon steel and stainless steel variants (stainless models include stainless contact points and chain for welding exotic materials)
• Accessories: Level and support device (larger sizes use cable hoists), torque wrench option (150 Nm), additional jackbars/jackscrews, additional chain, spacing screws
• Supply: Supplied in durable storage cases; optional torque wrench to ensure correct chain tension
• Availability note: NOT STOCKED IN THE AMERICAS
