Portable pipe cutting and beveling machine EZPCM

Overview

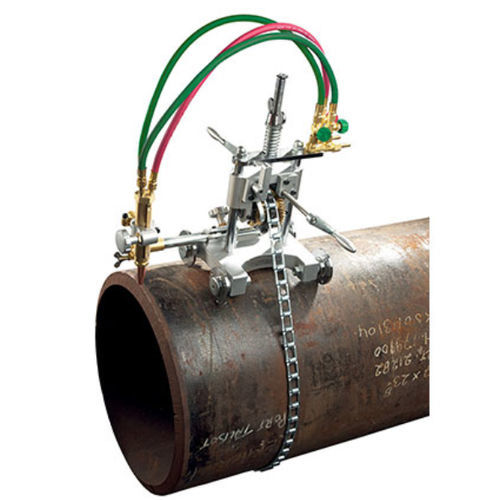

Mathey Dearman’s E-Z Pipecut Manual is a compact, hand-operated chain-driven oxy-fuel pipe cutting and bevelling machine designed for on-site and workshop use. It cuts and bevels pipe walls from 0.197" / 5 mm up to 2" / 50 mm and, in standard configuration, covers pipe diameters from 4.5" / 114 mm to 24" / 600 mm. The low gear ratio and worm wheel drive deliver smooth, accurate cutting. A quick-release clutch permits rapid chain disengagement for fast setup and positioning, and the bevelling head angle (up to 45°) is set precisely via a rack-and-pinion scale.

Product Advantages / Includes

• Manual chain-driven portable oxy-fuel cutting and bevelling machine
• Model / Part no.: EZPCM
• Universal nozzle-mix torch compatible with all nozzle-mix cutting nozzles (nozzles not included; not interchangeable with Mathey Dearman saddle machines)
• Standard chain for pipe diameters 4.5 – 24" / 114 – 600 mm
• Operation instructions (manual included)

Guide Band
For guaranteed square cuts and bevels on pipe diameters larger than 24" / 600 mm, use the optional guide band system matched to the pipe size. Note: outside the USA the standard green hoses are supplied in blue.

Technical Specification
PART NO.: EZPCM
POWER SUPPLY: Manual-driven unit
PIPE DIAMETER: Up to 24" / 600 mm (standard configuration)
WALL THICKNESS: 0.197 – 2" / 5 – 50 mm
TORCH: Universal nozzle-mix torch (nozzles not included)
CUT/BEVEL ANGLE: Variable up to 45°
VERTICAL TORCH +/-: 2" / 50 mm
LATERAL TORCH +/-: 4" / 100 mm
TRACK WIDTH: 9.1" / 230 mm
CUTTING SPEED: Determined by operator
WEIGHT: 8.50 kg / 18.70 lbs
DIMENSIONS (L x W x H): 350 x 420 x 550 mm

Chain and Guide Band Calculations
Chain calculation: Pipe diameter (inch) x 3.142 + 24 = total (inch) × 2.54 = total (cm). Example: 36" → 36 × 3.142 = 113.112; +24 = 137.112 in → ×2.54 = 348.26 cm.
Guide band calculation: Pipe diameter (inch) + 2 × 3.142 + 6 = total (inch) × 2.54 = total (cm). Example: 36" → 36 + 2×3.142 + 6 = 48.284 in → ×2.54 = 122.59 cm.

Technical Characteristics

• Model / Part no.: EZPCM
• Operation: Manual-driven unit
• Pipe range (standard): 4.5 - 24" / 114 - 600 mm
• Wall thickness capacity: 0.197 - 2" / 5 - 50 mm
• Bevel angle: Variable up to 45°
• Torch: Universal nozzle-mix torch (nozzles not included)
• Track width: 9.1" / 230 mm
• Weight: 8.50 kg / 18.70 lbs
• Dimensions (L x W x H): 350 x 420 x 550 mm
