Motorized pipe cutting and beveling machine EZPCA series

portable

Product Overview

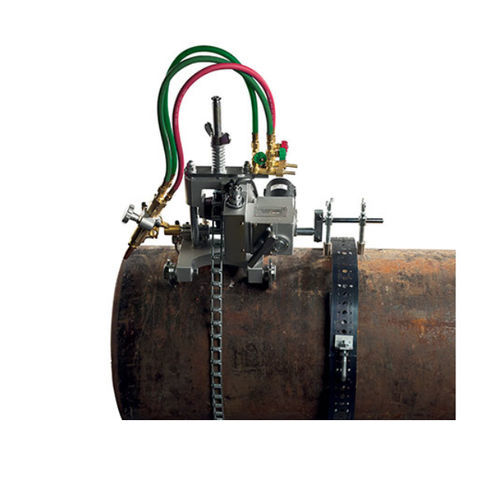

The Mathey Dearman E-Z Pipecut Auto is the powered version of the E-Z Pipecut Manual. Once the cutting speed is set to match the pipe wall thickness, the unit is driven around the pipe using a speed-adjustable remote control to perform cuts and bevels without operator intervention. The portable oxy-fuel cutting machine can be converted to a plasma system for cutting exotic materials such as stainless steel (plasma torch holder available on request).

Product Advantages

• Motorized chain-driven portable oxy-fuel cutting machine
• E-Z Pipecut Auto includes:
• Pipe cutting machine E-Z Pipecut Auto
• Universal nozzle-mix torch suitable for all nozzle-mix cutting nozzles (nozzles not included)
• Standard chain for cutting pipe diameters of 4.5 – 24" / 114 – 600 mm
• Connecting lead (5 m)
• Remote control
• Transformer 110v – 220v
• Operation instructions

Guide band
For guaranteed square cuts and bevels on pipe diameters larger than 24" / 600 mm, using the optional guide band system sized to the pipe is recommended.

Notes
* Outside the USA, the green hoses will be blue.

Technical specifications

• PART NO.: EZPCA1: 110v / EZPCA2: 220v
• POWER SUPPLY: 230v / 110v (50 – 60Hz)
• PIPE DIAMETER: Up to 24" / 600 mm (in standard configuration)
• WALL THICKNESS: 0.197 – 2" / 5 – 50 mm
• TORCH: Universal nozzle-mix torch suitable for all nozzle-mix cutting nozzles (nozzles not included)
• CUT/BEVEL ANGLE: Variable up to 45°
• VERTICAL TORCH +/-: 2" / 50 mm
• LATERAL TORCH +/-: 4" / 100 mm
• TRACK WIDTH: 9.1" / 230 mm
• CUTTING SPEED: 50 – 1,150 mm/min
• WEIGHT: 16.00 kg / 36 lbs
• DIMENSIONS: L x W x H – 420 x 280 x 550 mm
• Chain calculation example: Pipe diameter (inch) x 3.142 + 24 = (total inch) x 2.54 = (total cm). Example: 36" x 3.142 = 113.112 + 24 = 137.11 total inch x 2.54 = 348.26 total cm
• Guide band calculation example: Pipe diameter (inch) + 2 x 3.142 + 6 = (total inch) x 2.54 = (total cm). Example: 36" + 2 x 3.142 = 119.40 + 6 = 125.40 total inch x 2.54 = 318.51 total cm
