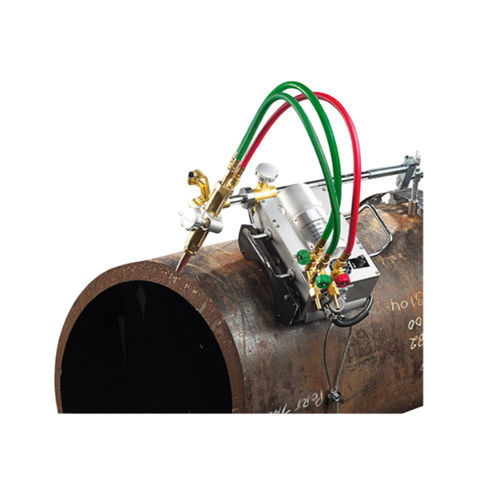

Portable pipe cutting and beveling machine EZPCMAG seriesmotorized
Add to favorites
Compare this product
Characteristics
- Options
- portable, motorized
Description
Overview
The E-Z Pipecut Magnetic is an electric-driven magnetic pipe cutting and bevelling machine designed for on-site and workshop use. Compact and portable, it cuts and bevels pipes from 9 in / 230 mm diameter upwards using two sets of internal magnetic, electrically driven roller wheels that maintain contact with the pipe circumference during operation (magnetic holding force > 110 lbs / 50 kg). Suitable for contractors, welders and pipefitters working with oxyfuel cutting processes.
Product advantages
Guide band
To guarantee square cuts and consistent bevels on pipe diameters larger than 24 in / 600 mm, use the optional guide band sized to the pipe. Outside the USA, green hoses will be supplied in blue.
Technical specification (table)
PART NO.: EZPCMAG1: 110v / EZPCMAG2: 220v
POWER SUPPLY: 110v / 220v
PIPE DIAMETER: 9 in / 230 mm upwards
WALL THICKNESS: 0.197 – 2 in / 5 – 50 mm
TORCH: Universal nozzle-mix torch suitable for all nozzle-mix cutting nozzles (nozzles not included)
CUT/BEVEL ANGLE: Variable up to 45°
VERTICAL TORCH +/-: 2 in / 50 mm
LATERAL TORCH +/-: 4 in / 100 mm
TRACK WIDTH: 50 – 780 mm/min
CUTTING SPEED: 50 – 1,150 mm/min
WEIGHT: 20.00 kg / 18.70 lbs
DIMENSIONS: L x W x H – 350 x 310 x 280 mm
Guide band calculation: Pipe diameter (inch) + 2 x 3.142 + 6 = (total inch) x 2.54 = (total cm). E.G. 36 in + 2 x 3.142 = 119.40 + 6 = (125.40 total inch) x 2.54 = (318.51 total cm)
Technical data
The E-Z Pipecut Magnetic is an electric-driven magnetic pipe cutting and bevelling machine designed for on-site and workshop use. Compact and portable, it cuts and bevels pipes from 9 in / 230 mm diameter upwards using two sets of internal magnetic, electrically driven roller wheels that maintain contact with the pipe circumference during operation (magnetic holding force > 110 lbs / 50 kg). Suitable for contractors, welders and pipefitters working with oxyfuel cutting processes.
Product advantages
- Electric-driven magnetic portable oxyfuel cutting and bevelling machine
- Includes: E-Z Pipecut Magnetic cutting machine
- Universal nozzle-mix torch compatible with nozzle-mix cutting nozzles (nozzles not included; not interchangeable with Mathey Dearman saddle and band crawler machines)
- Supplied with gas hoses and power cable
- Operation instructions included
Guide band
To guarantee square cuts and consistent bevels on pipe diameters larger than 24 in / 600 mm, use the optional guide band sized to the pipe. Outside the USA, green hoses will be supplied in blue.
Technical specification (table)
PART NO.: EZPCMAG1: 110v / EZPCMAG2: 220v
POWER SUPPLY: 110v / 220v
PIPE DIAMETER: 9 in / 230 mm upwards
WALL THICKNESS: 0.197 – 2 in / 5 – 50 mm
TORCH: Universal nozzle-mix torch suitable for all nozzle-mix cutting nozzles (nozzles not included)
CUT/BEVEL ANGLE: Variable up to 45°
VERTICAL TORCH +/-: 2 in / 50 mm
LATERAL TORCH +/-: 4 in / 100 mm
TRACK WIDTH: 50 – 780 mm/min
CUTTING SPEED: 50 – 1,150 mm/min
WEIGHT: 20.00 kg / 18.70 lbs
DIMENSIONS: L x W x H – 350 x 310 x 280 mm
Guide band calculation: Pipe diameter (inch) + 2 x 3.142 + 6 = (total inch) x 2.54 = (total cm). E.G. 36 in + 2 x 3.142 = 119.40 + 6 = (125.40 total inch) x 2.54 = (318.51 total cm)
Technical data
- Part Number: EZPCMAG1 (110v); EZPCMAG2 (220v)
- Power supply: 110v / 220v
- Pipe diameter range: 9 in / 230 mm upwards
- Wall thickness capability: 0.197 – 2 in / 5 – 50 mm
- Torch type: Universal nozzle-mix torch (nozzles not included)
- Cut/bevel angle: Variable up to 45°
- Vertical torch travel: +/- 2 in / 50 mm
- Lateral torch travel: +/- 4 in / 100 mm
- Track width (feed): 50 – 780 mm/min
- Cutting speed: 50 – 1,150 mm/min
- Weight: 20.00 kg / 18.70 lbs
- Dimensions (L x W x H): 350 x 310 x 280 mm
