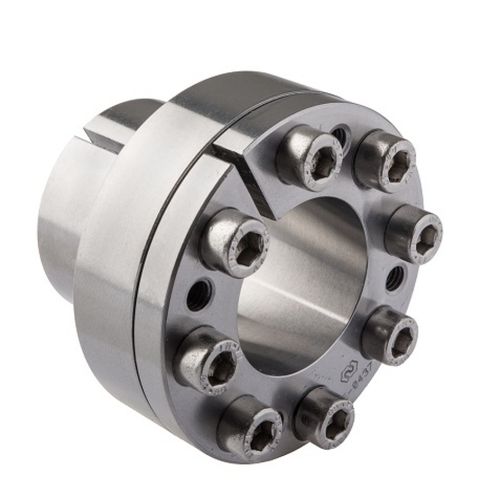

Rigid coupling MAV 5061 expandible axleshaftself-centering
Add to favorites
Compare this product
Characteristics
- Type
- rigid, expandible axle
- Product applications
- shaft
- Other characteristics
- self-centering
- Installation system
- flange
- Torque
Max.: 4,300 Nm
(3,171.5172 ft.lb)Min.: 11 Nm
(8.1132 ft.lb)
Description
medium capacity
self-centering, self-locking
fixed axial hub position during tightening
single taper design
well suited for connection of thin walled hubs
tolerances: shaft h7-h11; hub bore H7-H11
surface finish of shaft and hub bore Ra < 3.2 µm
Composition
slotted inner ring with integrated push-off threads
slotted outer ring
spacer
set of socket head cap screws, grade A4-80
