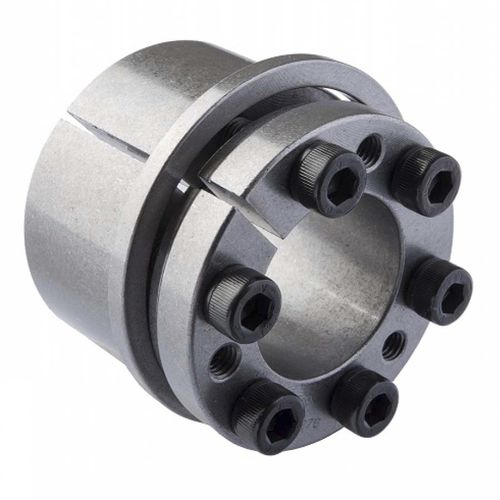

Rigid coupling MAV 6902 shafttorqueself-centering
Add to favorites
Compare this product
Characteristics
- Type
- rigid
- Product applications
- shaft
- Other characteristics
- torque, self-centering
- Torque
Min.: 164 Nm
(120.9602 ft.lb)Max.: 8,780 Nm
(6,475.7957 ft.lb)
Description
self-centering, self-locking
fixed axial hub position during tightening
single taper design
fitting length larger than MAV 1061
lubrication: food grade oil FDA approved class H-1
tolerances: shaft h8; hub bore H8
shaft and hub bore surface finish 0.8 ≤ Ra ≤ 3.2 μm
Composition
slotted inner ring with integrated push-off tapped holes
slotted outer ring
spacer ring
set of socket head cap screws, grade A4-80
