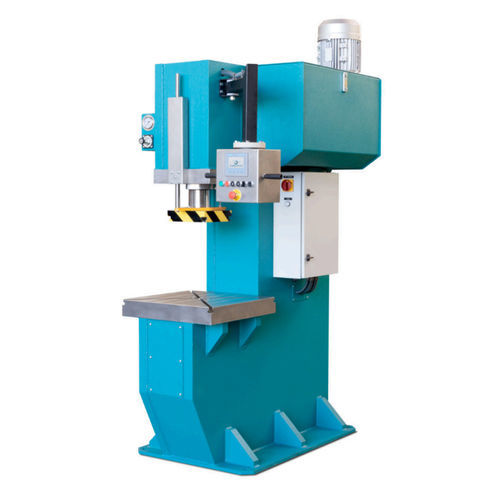

Hydraulic press PCM100 4458punchingvertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- punching
- Other characteristics
- vertical
- Force
250 tf
- Opening
800 mm
(31 in)- Stroke
500 mm
(19.685 in)- Table width
600 mm
(24 in)- Table length
800 mm
(31 in)- Max. pressure
320 bar
(4,641 psi)- Working speed
2.4 mm/s
- Weight
7,500 kg
(16,535 lb)- Overall length
1,200 mm
(47 in)- Overall width
1,320 mm
(52 in)- Overall height
3,270 mm
(129 in)
Description
Upper plate guided by 4 cylindrical columns Ø80 mm.
Approximation speed: 15 mm/sec.
Engine power: 7,5 Hp.
Catalogs
No catalogs are available for this product.
See all of Mécamaq‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
Other Mécamaq products
PCM
