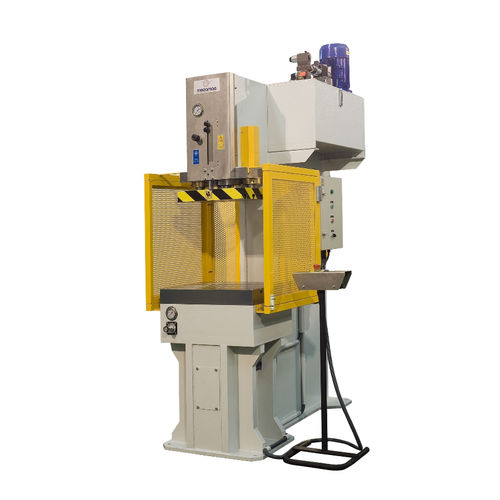

Hydraulic press PCM-60stampingC-frame
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- stamping
- Structure
- C-frame
- Force
60 tf
- Stroke
200 mm
(7.874 in)- Table width
400 mm, 650 mm
(16 in, 26 in)- Table length
450 mm, 650 mm
(18 in, 26 in)- Max. pressure
310 bar
(4,496 psi)- Working speed
8 mm/s
- Weight
3,100 kg
(6,834 lb)
Description
Power engine 5,5 Hp.
Adjustable cushion 25 Tm and plate 400 x 300 mm.
Lateral flip-top protections with safety mike.
